Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	MountingType	CoilVoltage	ContactForm	ContactRating(Current)	SwitchingVoltage	CoilCurrent	CoilType	Features	TerminationStyle	SealRating	CoilInsulation	MustOperateVoltage	MustReleaseVoltage	OperateTime	ReleaseTime	OperatingTemperature	ContactMaterial
DK1A1B-24V RELAY GEN PURPOSE DPST 8A 24V Panasonic Electric Works	3,932	12.28	RFQ	Datasheet	Bulk	DK	Active	Through Hole	24VDC	DPST-NO/NC (1 Form A, 1 Form B)	8 A	250VAC, 125VDC - Max	8.3 mA	Non Latching	-	PC Pin	Sealed - Fully	-	16.8 VDC	2.4 VDC	10 ms	8 ms	-40°C ~ 65°C	Silver Nickel (AgNi)
S2EB-12V RELAY GEN PURPOSE 4PST 4A 12V Panasonic Electric Works	3,993	16.61	RFQ	Datasheet	Tray	S	Active	Through Hole	12VDC	4PST-2NO/2NC (2 Form A, 2 Form B)	4 A	250VAC, 48VDC - Max	16.7 mA	Non Latching	-	PC Pin	Sealed - Fully	-	8.4 VDC	1.2 VDC	15 ms	10 ms	-55°C ~ 65°C	Silver Alloy, Cadmium Free
NC2D-P-DC12V RELAY GEN PURPOSE DPDT 5A 12V Panasonic Electric Works	2,388	20.39	RFQ	Datasheet	Tube	NC	Active	Through Hole	12VDC	DPDT (2 Form C)	5 A	250VAC - Max	30 mA	Non Latching	-	PC Pin	-	-	9.6 VDC	1.2 VDC	20 ms	10 ms	-40°C ~ 70°C	Silver Nickel (AgNi)
AHES3191 RELAY GEN PURPOSE DPST 35A 12V Panasonic Electric Works	3,233	22.30	RFQ	Datasheet	Tray	HE-S	Active	Through Hole	12VDC	DPST-NO (2 Form A)	35 A	277VAC - Nom	157 mA	Non Latching	-	PC Pin	Sealed - Flux Protection	Class F	9 VDC	0.6 VDC	30 ms	10 ms	-40°C ~ 55°C	Silver Tin Oxide (AgSnO)

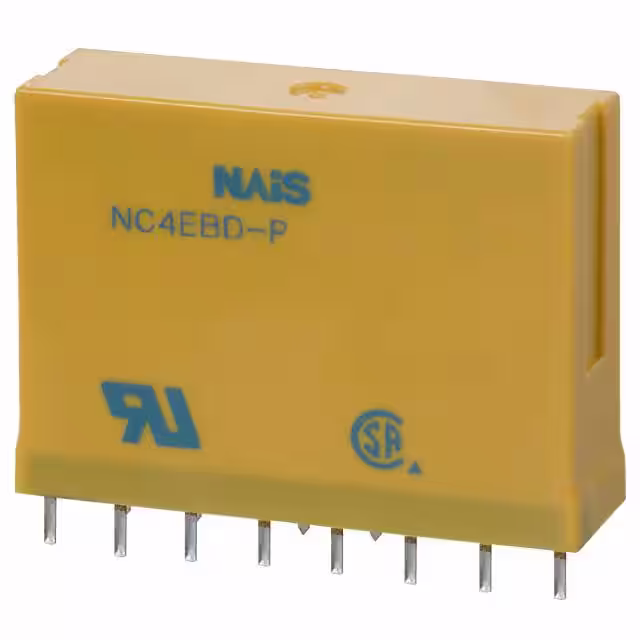

NC4EBD-P-DC24V RELAY GEN PURPOSE 4PDT 5A 24V Panasonic Electric Works	3,859	23.56	RFQ	Datasheet	Tray	NC	Active	Through Hole	24VDC	4PDT (4 Form C)	5 A	250VAC - Max	30 mA	Non Latching	-	PC Pin	Sealed - Fully	-	19.2 VDC	2.4 VDC	20 ms	10 ms	-40°C ~ 55°C	Silver Nickel (AgNi)
AHES4292 RELAY GEN PURPOSE 3PST 35A 24V Panasonic Electric Works	2,377	24.35	RFQ	Datasheet	Tray	HE-S	Active	Through Hole	24VDC	3PST-2NO/1NC (2 Form A, 1 Form B)	35 A	277VAC - Nom	78 mA	Non Latching	-	PC Pin	Sealed - Flux Protection	Class F	18 VDC	1.2 VDC	30 ms	10 ms	-40°C ~ 55°C	Silver Tin Oxide (AgSnO)
SP2-L2-DC12V RELAY GEN PURPOSE DPDT 15A 12V Panasonic Electric Works	3,913	25.37	RFQ	Datasheet	Bulk	SP	Active	Socketable	12VDC	DPDT (2 Form C)	15 A	250VAC, 30VDC - Max	25 mA	Latching, Dual Coil	-	Plug In, Quick Connect - 0.187 (4.7mm)	-	-	8.4 VDC	-	30 ms	30 ms	-50°C ~ 60°C	Silver Tin Oxide (AgSnO)
SP4-DC24V RELAY GEN PURPOSE 4PDT 10A 24V Panasonic Electric Works	3,078	34.94	RFQ	Datasheet	Bulk	SP	Active	Socketable	24VDC	4PDT (4 Form C)	10 A	250VAC, 30VDC - Max	12.5 mA	Non Latching	-	Plug In, Quick Connect - 0.187 (4.7mm)	-	-	16.8 VDC	2.4 VDC	30 ms	20 ms	-50°C ~ 60°C	Silver Tin Oxide (AgSnO)
SP4-P-DC5V RELAY GEN PURPOSE 4PDT 10A 5V Panasonic Electric Works	2,758	35.57	RFQ	Datasheet	Tube	SP	Active	Through Hole	5VDC	4PDT (4 Form C)	10 A	250VAC, 30VDC - Max	60.2 mA	Non Latching	-	PC Pin	-	-	3.5 VDC	0.5 VDC	30 ms	20 ms	-50°C ~ 60°C	Silver Tin Oxide (AgSnO)
RT3SN-24V RELAY GEN PURPOSE SPST 3A 24V Panasonic Electric Works	2,649	63.33	RFQ	Datasheet	Bulk	RT-3	Active	DIN Rail	24VDC	SPST-NO (1 Form A) x 4	3 A	250VAC, 30VDC - Max	4.6 mA	Non Latching	Lighted Indicator, Socket Included	Screw Terminal	-	-	16.8 VDC	1.2 VDC	-	-	-20°C ~ 55°C	-
AEP52024 RELAY GEN PURPOSE SPST 20A 24V Panasonic Electric Works	2,759	66.80	RFQ	Datasheet	Box	AEP	Active	Chassis Mount	24VDC	SPST-NO (1 Form A)	20 A	277VAC, 400VDC - Nom	163 mA	Non Latching	-	Quick Connect - 0.187 (4.7mm)	Sealed - Hermetically	-	18 VDC	1 VDC	50 ms	30 ms	-40°C ~ 80°C	-

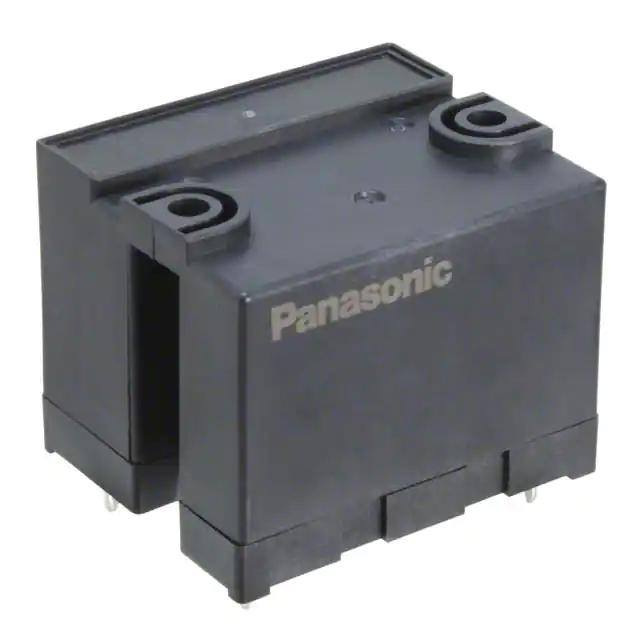

HEV2AN-P-DC12V RELAY GEN PURPOSE DPST 20A 12V Panasonic Electric Works	3,849	98.79	RFQ	Datasheet	Tray	HE-V	Active	Through Hole	12VDC	DPST-NO (2 Form A)	20 A	1000VDC - Max	160 mA	Non Latching	-	PC Pin	Sealed - Flux Protection	Class F	8.4 VDC	0.6 VDC	30 ms	10 ms	-40°C ~ 55°C	Silver Nickel (AgNi)
JW1AFSN-DC12V-TV-F RELAY GEN PURPOSE SPST 10A 12V Panasonic Electric Works	3,212	2.37	RFQ	Datasheet	Box	JW	Active	Through Hole	12VDC	SPST-NO (1 Form A)	10 A	250VAC, 30VDC - Max	44 mA	Non Latching	-	PC Pin	Sealed - Fully	-	8.4 VDC	1.2 VDC	15 ms	5 ms	-40°C ~ 60°C	Silver Tin Oxide (AgSnO)
ALQ3F24 RELAY GEN PURPOSE SPST 10A 24V Panasonic Electric Works	2,605	1.18	RFQ	Datasheet	Box	ALQ	Active	Through Hole	24VDC	SPST-NO (1 Form A)	10 A	250VAC - Max	8.3 mA	Non Latching	-	PC Pin	-	Class F	18 VDC	1.2 VDC	20 ms	20 ms	-40°C ~ 85°C	Silver Nickel (AgNi)
ALQ3F12 RELAY GEN PURPOSE SPST 10A 12V Panasonic Electric Works	3,339	1.18	RFQ	Datasheet	Box	ALQ	Active	Through Hole	12VDC	SPST-NO (1 Form A)	10 A	250VAC - Max	16.7 mA	Non Latching	-	PC Pin	-	Class F	9 VDC	0.6 VDC	20 ms	20 ms	-40°C ~ 85°C	Silver Nickel (AgNi)

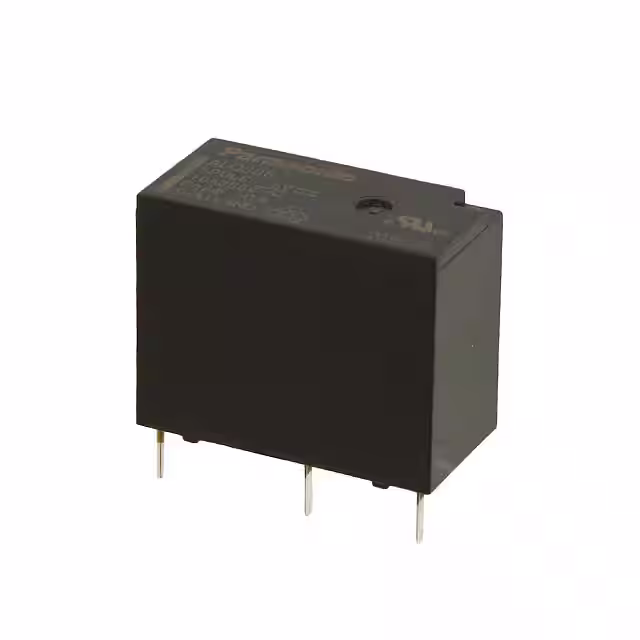

ALQ306 RELAY GEN PURPOSE SPST 10A 6V Panasonic Electric Works	2,881	1.24	RFQ	Datasheet	Box	ALQ	Active	Through Hole	6VDC	SPST-NO (1 Form A)	10 A	250VAC - Max	33.3 mA	Non Latching	-	PC Pin	-	Class B	4.5 VDC	0.3 VDC	20 ms	20 ms	-40°C ~ 85°C	Silver Nickel (AgNi)
ALQ1F05 RELAY GEN PURPOSE SPDT 10A 5V Panasonic Electric Works	3,297	1.56	RFQ	Datasheet	Box	ALQ	Active	Through Hole	5VDC	SPDT (1 Form C)	10 A	250VAC - Max	80 mA	Non Latching	-	PC Pin	-	Class F	3.75 VDC	0.25 VDC	20 ms	20 ms	-40°C ~ 85°C	Silver Nickel (AgNi)
ALQ1F24 RELAY GEN PURPOSE SPDT 10A 24V Panasonic Electric Works	3,322	1.61	RFQ	Datasheet	Box	ALQ	Active	Through Hole	24VDC	SPDT (1 Form C)	10 A	250VAC - Max	16.7 mA	Non Latching	-	PC Pin	-	Class F	18 VDC	1.2 VDC	20 ms	20 ms	-40°C ~ 85°C	Silver Nickel (AgNi)
JW1FSN-DC18V RELAY GEN PURPOSE SPDT 10A 18V Panasonic Electric Works	3,890	2.63	RFQ	Datasheet	Bulk	JW	Active	Through Hole	18VDC	SPDT (1 Form C)	10 A	250VAC, 30VDC - Max	29 mA	Non Latching	-	PC Pin	Sealed - Fully	-	12.6 VDC	1.8 VDC	15 ms	5 ms	-40°C ~ 60°C	Silver Nickel (AgNi)
ALZ11B12 RELAY GEN PURPOSE SPDT 16A 12V Panasonic Electric Works	3,616	2.74	RFQ	Datasheet	Tube	ALZ	Active	Through Hole	12VDC	SPDT (1 Form C)	16 A	440VAC - Max	33.3 mA	Non Latching	-	PC Pin	Sealed - Flux Protection	Class B	8.4 VDC	1.2 VDC	15 ms	5 ms	-40°C ~ 85°C	Silver Tin Oxide (AgSnO)
