Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	MountingType	CoilVoltage	ContactForm	ContactRating(Current)	SwitchingVoltage	CoilCurrent	CoilType	Features	TerminationStyle	SealRating	CoilInsulation	MustOperateVoltage	MustReleaseVoltage	OperateTime	ReleaseTime	OperatingTemperature	ContactMaterial
JW1FSN-B-DC5V RELAY GEN PURPOSE SPDT 10A 5V Panasonic Electric Works	2,466	2.96	RFQ	Datasheet	Bulk	JW	Active	Through Hole	5VDC	SPDT (1 Form C)	10 A	250VAC, 30VDC - Max	106 mA	Non Latching	-	PC Pin	Sealed - Fully	Class B	3.5 VDC	0.5 VDC	15 ms	5 ms	-40°C ~ 85°C	Silver Nickel (AgNi)
ALZ12F05W RELAY GEN PURPOSE SPDT 16A 5V Panasonic Electric Works	2,841	2.96	RFQ	Datasheet	Bulk	ALZ	Active	Through Hole	5VDC	SPDT (1 Form C)	16 A	440VAC - Max	80 mA	Non Latching	-	PC Pin	Sealed - Fully	Class F	3.5 VDC	0.5 VDC	15 ms	5 ms	-40°C ~ 105°C	Silver Tin Oxide (AgSnO)
JW1FSN-B-DC24V RELAY GEN PURPOSE SPDT 10A 24V Panasonic Electric Works	2,805	2.98	RFQ	Datasheet	Bulk	JW	Active	Through Hole	24VDC	SPDT (1 Form C)	10 A	250VAC, 30VDC - Max	22 mA	Non Latching	-	PC Pin	Sealed - Fully	Class B	16.8 VDC	2.4 VDC	15 ms	5 ms	-40°C ~ 85°C	Silver Nickel (AgNi)
ALZ11F24 RELAY GEN PURPOSE SPDT 16A 24V Panasonic Electric Works	3,504	3.01	RFQ	Datasheet	Tube	ALZ	Active	Through Hole	24VDC	SPDT (1 Form C)	16 A	440VAC - Max	16.7 mA	Non Latching	-	PC Pin	Sealed - Flux Protection	Class F	16.8 VDC	2.4 VDC	15 ms	5 ms	-40°C ~ 105°C	Silver Tin Oxide (AgSnO)
ALZN5B12W RELAY GEN PURPOSE SPST 16A 12V Panasonic Electric Works	3,106	3.09	RFQ	Datasheet	Tray	ALZN	Active	Through Hole	12VDC	SPST-NO (1 Form A)	16 A	440VAC - Max	33.3 mA	Non Latching	-	PC Pin	Sealed - Flux Protection	Class B	8.4 VDC	1.2 VDC	15 ms	5 ms	-40°C ~ 85°C	Silver Tin Oxide (AgSnO)
JW2SN-DC9V RELAY GEN PURPOSE DPDT 5A 9V Panasonic Electric Works	3,016	3.17	RFQ	Datasheet	Bulk	JW	Active	Through Hole	9VDC	DPDT (2 Form C)	5 A	250VAC, 30VDC - Max	58 mA	Non Latching	-	PC Pin	Sealed - Fully	-	6.3 VDC	0.9 VDC	15 ms	5 ms	-40°C ~ 60°C	Silver Nickel (AgNi)
JW2SN-B-DC12V RELAY GEN PURPOSE DPDT 5A 12V Panasonic Electric Works	3,761	3.31	RFQ	Datasheet	Tube	JW	Active	Through Hole	12VDC	DPDT (2 Form C)	5 A	250VAC, 30VDC - Max	44 mA	Non Latching	-	PC Pin	Sealed - Fully	Class B	8.4 VDC	1.2 VDC	15 ms	5 ms	-40°C ~ 85°C	Silver Nickel (AgNi)
ALZ51B24 RELAY GEN PURPOSE SPST 16A 24V Panasonic Electric Works	3,758	3.33	RFQ	Datasheet	Tube	ALZ	Active	Through Hole	24VDC	SPST-NO (1 Form A)	16 A	440VAC - Max	16.7 mA	Non Latching	-	PC Pin	Sealed - Flux Protection	Class B	16.8 VDC	2.4 VDC	15 ms	5 ms	-40°C ~ 85°C	Silver Tin Oxide (AgSnO)

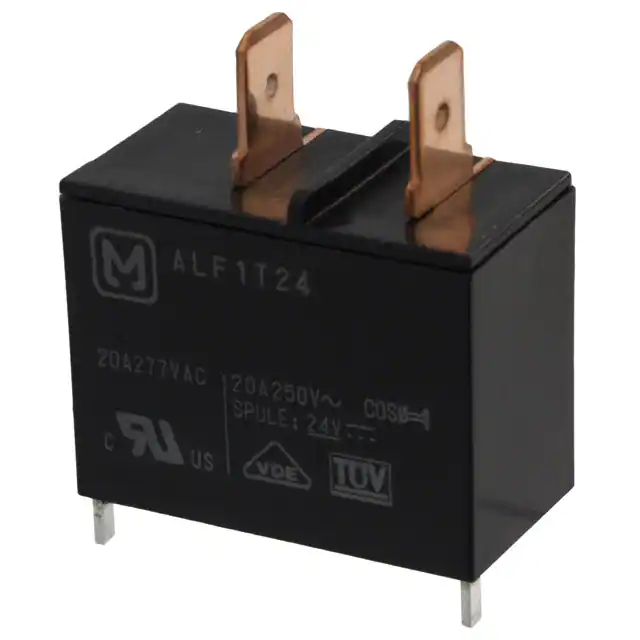

ALF1T24 RELAY GEN PURPOSE SPST 20A 24V Panasonic Electric Works	2,871	3.68	RFQ	Datasheet	Bulk	ALF	Active	Through Hole	24VDC	SPST-NO (1 Form A)	20 A	250VAC - Max	37.5 mA	Non Latching	-	PC Pin, Quick Connect - 0.250 (6.3mm)	-	-	16.8 VDC	2.4 VDC	20 ms	15 ms	-40°C ~ 60°C	Silver Tin Oxide (AgSnO)
ALF1PF12 RELAY GEN PURPOSE SPST 20A 12V Panasonic Electric Works	2,498	3.79	RFQ	Datasheet	Tray	ALF	Active	Through Hole	12VDC	SPST-NO (1 Form A)	20 A	250VAC - Max	75 mA	Non Latching	-	PC Pin	-	Class F	8.4 VDC	1.2 VDC	20 ms	15 ms	-40°C ~ 60°C	Silver Tin Oxide (AgSnO)
ALF1T05 RELAY GEN PURPOSE SPST 20A 5V Panasonic Electric Works	2,623	3.87	RFQ	Datasheet	Bulk	ALF	Active	Through Hole	5VDC	SPST-NO (1 Form A)	20 A	250VAC - Max	180 mA	Non Latching	-	PC Pin, Quick Connect - 0.250 (6.3mm)	-	-	3.5 VDC	0.5 VDC	20 ms	15 ms	-40°C ~ 60°C	Silver Tin Oxide (AgSnO)
APAN3118 RELAY GEN PURPOSE SPST 5A 18V Panasonic Electric Works	3,690	5.94	RFQ	Datasheet	Tube	PA-N	Active	Through Hole	18VDC	SPST-NO (1 Form A)	5 A	250VAC, 110VDC - Max	6.1 mA	Non Latching	-	PC Pin	Sealed - Fully	-	12.6 VDC	0.9 VDC	10 ms	5 ms	-40°C ~ 90°C	Silver Nickel (AgNi), Gold (Au)
ALFG2PF12 RELAY GEN PURPOSE SPST 31A 12V Panasonic Electric Works	3,902	6.53	RFQ	Datasheet	Bulk	ALFG	Active	Through Hole	12VDC	SPST-NO (1 Form A)	31 A	250VAC - Max	117 mA	Non Latching	-	PC Pin	-	Class F	8.4 VDC	1.2 VDC	20 ms	10 ms	-40°C ~ 60°C	Silver Tin Oxide (AgSnO)
DSP1A-DC5V RELAY GEN PURPOSE SPST 8A 5V Panasonic Electric Works	2,485	6.77	RFQ	Datasheet	Bulk	DSP	Active	Through Hole	5VDC	SPST-NO (1 Form A)	8 A	250VAC, 30VDC - Max	60 mA	Non Latching	-	PC Pin	Sealed - Fully	-	4 VDC	0.5 VDC	10 ms	5 ms	-40°C ~ 60°C	Silver Tin Oxide (AgSnO)
DSP1A-DC24V RELAY GEN PURPOSE SPST 8A 24V Panasonic Electric Works	3,398	6.77	RFQ	Datasheet	Bulk	DSP	Active	Through Hole	24VDC	SPST-NO (1 Form A)	8 A	250VAC, 30VDC - Max	12.5 mA	Non Latching	-	PC Pin	Sealed - Fully	-	19.2 VDC	2.4 VDC	10 ms	5 ms	-40°C ~ 60°C	Silver Tin Oxide (AgSnO)
DK1A-12V-F RELAY GEN PURPOSE SPST 10A 12V Panasonic Electric Works	3,797	8.79	RFQ	Datasheet	Tube	DK	Active	Through Hole	12VDC	SPST-NO (1 Form A)	10 A	250VAC, 125VDC - Max	16.7 mA	Non Latching	-	PC Pin	Sealed - Fully	-	8.4 VDC	1.2 VDC	10 ms	8 ms	-40°C ~ 65°C	Silver Tin Oxide (AgSnO)
ADY10005 RELAY GEN PURPOSE SPST 10A 5V Panasonic Electric Works	2,454	9.49	RFQ	Datasheet	Tray	ADY	Active	Through Hole	5VDC	SPST-NO (1 Form A)	10 A	380VAC, 125VDC - Max	40 mA	Non Latching	-	PC Pin	-	-	3.5 VDC	0.5 VDC	10 ms	8 ms	-40°C ~ 70°C	Silver Tin Oxide (AgSnO)
DK1A-L2-12V-F RELAY GEN PURPOSE SPST 10A 12V Panasonic Electric Works	2,807	11.07	RFQ	Datasheet	Bulk	DK	Active	Through Hole	12VDC	SPST-NO (1 Form A)	10 A	250VAC, 125VDC - Max	16.7 mA	Latching, Dual Coil	-	PC Pin	Sealed - Fully	-	8.4 VDC	-	10 ms	8 ms	-40°C ~ 65°C	Silver Tin Oxide (AgSnO)
DK1A1B-5V RELAY GEN PURPOSE DPST 8A 5V Panasonic Electric Works	3,528	12.07	RFQ	Datasheet	Bulk	DK	Active	Through Hole	5VDC	DPST-NO/NC (1 Form A, 1 Form B)	8 A	250VAC, 125VDC - Max	40 mA	Non Latching	-	PC Pin	Sealed - Fully	-	3.5 VDC	0.5 VDC	10 ms	8 ms	-40°C ~ 65°C	Silver Nickel (AgNi)
DK2A-5V RELAY GEN PURPOSE DPST 8A 5V Panasonic Electric Works	2,025	12.23	RFQ	Datasheet	Bulk	DK	Active	Through Hole	5VDC	DPST-NO (2 Form A)	8 A	250VAC, 125VDC - Max	40 mA	Non Latching	-	PC Pin	Sealed - Fully	-	3.5 VDC	0.5 VDC	10 ms	8 ms	-40°C ~ 65°C	Silver Nickel (AgNi)
