Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	MountingType	CoilVoltage	ContactForm	ContactRating(Current)	SwitchingVoltage	CoilCurrent	CoilType	Features	TerminationStyle	SealRating	CoilInsulation	MustOperateVoltage	MustReleaseVoltage	OperateTime	ReleaseTime	OperatingTemperature	ContactMaterial
ALZ11B05W RELAY GEN PURPOSE SPDT 16A 5V Panasonic Electric Works	3,475	2.77	RFQ	Datasheet	Bulk	ALZ	Active	Through Hole	5VDC	SPDT (1 Form C)	16 A	440VAC - Max	80 mA	Non Latching	-	PC Pin	Sealed - Flux Protection	Class B	3.5 VDC	0.5 VDC	15 ms	5 ms	-40°C ~ 85°C	Silver Tin Oxide (AgSnO)
ALZ11B09 RELAY GEN PURPOSE SPDT 16A 9V Panasonic Electric Works	2,529	2.77	RFQ	Datasheet	Tube	ALZ	Active	Through Hole	9VDC	SPDT (1 Form C)	16 A	440VAC - Max	44.4 mA	Non Latching	-	PC Pin	Sealed - Flux Protection	Class B	6.3 VDC	0.9 VDC	15 ms	5 ms	-40°C ~ 85°C	Silver Tin Oxide (AgSnO)
ALZ11B12W RELAY GEN PURPOSE SPDT 16A 12V Panasonic Electric Works	2,219	2.77	RFQ	Datasheet	Bulk	ALZ	Active	Through Hole	12VDC	SPDT (1 Form C)	16 A	440VAC - Max	33.3 mA	Non Latching	-	PC Pin	Sealed - Flux Protection	Class B	8.4 VDC	1.2 VDC	15 ms	5 ms	-40°C ~ 85°C	Silver Tin Oxide (AgSnO)
ALZ52B12 RELAY GEN PURPOSE SPST 16A 12V Panasonic Electric Works	3,506	2.77	RFQ	Datasheet	Tube	ALZ	Active	Through Hole	12VDC	SPST-NO (1 Form A)	16 A	440VAC - Max	33.3 mA	Non Latching	-	PC Pin	Sealed - Fully	Class B	8.4 VDC	1.2 VDC	15 ms	5 ms	-40°C ~ 105°C	Silver Tin Oxide (AgSnO)
ALZ52B24 RELAY GEN PURPOSE SPST 16A 24V Panasonic Electric Works	2,877	2.77	RFQ	Datasheet	Bulk,Tube	ALZ	Active	Through Hole	24VDC	SPST-NO (1 Form A)	16 A	440VAC - Max	16.7 mA	Non Latching	-	PC Pin	Sealed - Fully	Class B	16.8 VDC	2.4 VDC	15 ms	5 ms	-40°C ~ 105°C	Silver Tin Oxide (AgSnO)
ALZ52B05 RELAY GEN PURPOSE SPST 16A 5V Panasonic Electric Works	2,691	2.80	RFQ		Tube	ALZ	Active	Through Hole	5VDC	SPST-NO (1 Form A)	16 A	440VAC - Max	80 mA	Non Latching	-	PC Pin	Sealed - Fully	Class B	3.5 VDC	0.5 VDC	15 ms	5 ms	-40°C ~ 105°C	Silver Tin Oxide (AgSnO)
ALZ11B24 RELAY GEN PURPOSE SPDT 16A 24V Panasonic Electric Works	3,860	2.82	RFQ	Datasheet	Tube	ALZ	Active	Through Hole	24VDC	SPDT (1 Form C)	16 A	440VAC - Max	16.7 mA	Non Latching	-	PC Pin	Sealed - Flux Protection	Class B	16.8 VDC	2.4 VDC	15 ms	5 ms	-40°C ~ 85°C	Silver Tin Oxide (AgSnO)
ALZ52F24 RELAY GEN PURPOSE SPST 16A 24V Panasonic Electric Works	3,153	2.85	RFQ	Datasheet	Tube	ALZ	Active	Through Hole	24VDC	SPST-NO (1 Form A)	16 A	440VAC - Max	16.7 mA	Non Latching	-	PC Pin	Sealed - Fully	Class F	16.8 VDC	2.4 VDC	15 ms	5 ms	-40°C ~ 105°C	Silver Tin Oxide (AgSnO)
JW1FSN-DC9V RELAY GEN PURPOSE SPDT 10A 9V Panasonic Electric Works	3,991	2.90	RFQ	Datasheet	Bulk	JW	Active	Through Hole	9VDC	SPDT (1 Form C)	10 A	250VAC, 30VDC - Max	58 mA	Non Latching	-	PC Pin	Sealed - Fully	-	6.3 VDC	0.9 VDC	15 ms	5 ms	-40°C ~ 60°C	Silver Nickel (AgNi)

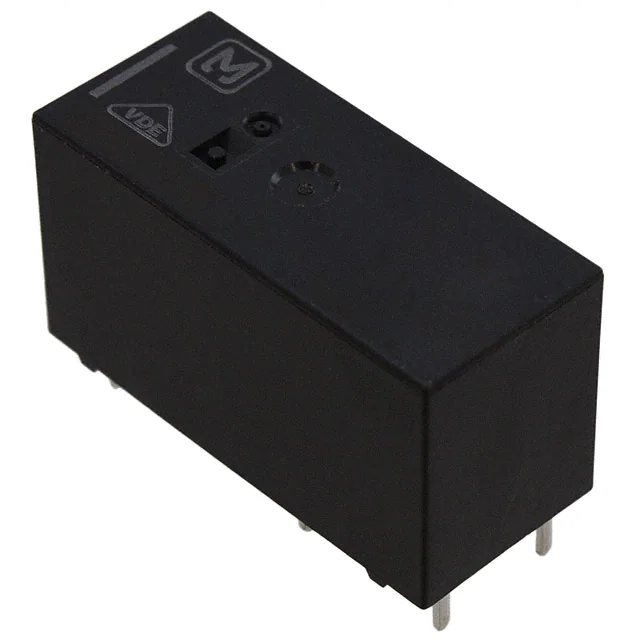

ALZ11B24W RELAY GEN PURPOSE SPDT 16A 24V Panasonic Electric Works	3,454	2.90	RFQ	Datasheet	Bulk	ALZ	Active	Through Hole	24VDC	SPDT (1 Form C)	16 A	440VAC - Max	16.7 mA	Non Latching	-	PC Pin	Sealed - Flux Protection	Class B	16.8 VDC	2.4 VDC	15 ms	5 ms	-40°C ~ 85°C	Silver Tin Oxide (AgSnO)
ALZ12B24W RELAY GEN PURPOSE SPDT 16A 24V Panasonic Electric Works	2,126	2.96	RFQ	Datasheet	Bulk	ALZ	Active	Through Hole	24VDC	SPDT (1 Form C)	16 A	440VAC - Max	16.7 mA	Non Latching	-	PC Pin	Sealed - Fully	Class B	16.8 VDC	2.4 VDC	15 ms	5 ms	-40°C ~ 85°C	Silver Tin Oxide (AgSnO)
JW1FSN-DC48V RELAY GEN PURPOSE SPDT 10A 48V Panasonic Electric Works	2,736	3.06	RFQ	Datasheet	Bulk	JW	Active	Through Hole	48VDC	SPDT (1 Form C)	10 A	250VAC, 30VDC - Max	11 mA	Non Latching	-	PC Pin	Sealed - Fully	-	33.6 VDC	4.8 VDC	15 ms	5 ms	-40°C ~ 60°C	Silver Nickel (AgNi)
ALZN5B05W RELAY GEN PURPOSE SPST 16A 5V Panasonic Electric Works	3,303	3.09	RFQ	Datasheet	Tray	ALZN	Active	Through Hole	5VDC	SPST-NO (1 Form A)	16 A	440VAC - Max	80 mA	Non Latching	-	PC Pin	Sealed - Flux Protection	Class B	3.5 VDC	0.5 VDC	15 ms	5 ms	-40°C ~ 85°C	Silver Tin Oxide (AgSnO)
ALZ51B05 RELAY GEN PURPOSE SPST 16A 5V Panasonic Electric Works	3,635	3.12	RFQ	Datasheet	Tube	ALZ	Active	Through Hole	5VDC	SPST-NO (1 Form A)	16 A	440VAC - Max	80 mA	Non Latching	-	PC Pin	Sealed - Flux Protection	Class B	3.5 VDC	0.5 VDC	15 ms	5 ms	-40°C ~ 85°C	Silver Tin Oxide (AgSnO)
JW2SN-DC6V RELAY GEN PURPOSE DPDT 5A 6V Panasonic Electric Works	2,930	3.17	RFQ	Datasheet	Bulk	JW	Active	Through Hole	6VDC	DPDT (2 Form C)	5 A	250VAC, 30VDC - Max	88 mA	Non Latching	-	PC Pin	Sealed - Fully	-	4.2 VDC	0.6 VDC	15 ms	5 ms	-40°C ~ 60°C	Silver Nickel (AgNi)
ALZ51B12 RELAY GEN PURPOSE SPST 16A 12V Panasonic Electric Works	2,645	3.17	RFQ	Datasheet	Tube	ALZ	Active	Through Hole	12VDC	SPST-NO (1 Form A)	16 A	440VAC - Max	33.3 mA	Non Latching	-	PC Pin	Sealed - Flux Protection	Class B	8.4 VDC	1.2 VDC	15 ms	5 ms	-40°C ~ 85°C	Silver Tin Oxide (AgSnO)
DE1A1B-12V RELAY GEN PURPOSE DPST 8A 12V Panasonic Electric Works	2,435	10.11	RFQ	Datasheet	Tube	DE	Active	Through Hole	12VDC	DPST-NO/NC (1 Form A, 1 Form B)	8 A	250VAC, 30VDC - Max	16.7 mA	Non Latching	-	PC Pin	-	-	8.4 VDC	1.2 VDC	10 ms	5 ms	-40°C ~ 70°C	Silver Tin Oxide (AgSnO)
JW1FSN-DC6V RELAY GEN PURPOSE SPDT 10A 6V Panasonic Electric Works	3,633	3.20	RFQ	Datasheet	Bulk	JW	Active	Through Hole	6VDC	SPDT (1 Form C)	10 A	250VAC, 30VDC - Max	88 mA	Non Latching	-	PC Pin	Sealed - Fully	-	4.2 VDC	0.6 VDC	15 ms	5 ms	-40°C ~ 60°C	Silver Nickel (AgNi)
ALZ51F12 RELAY GEN PURPOSE SPST 16A 12V Panasonic Electric Works	2,928	3.23	RFQ	Datasheet	Tube	ALZ	Active	Through Hole	12VDC	SPST-NO (1 Form A)	16 A	440VAC - Max	33.3 mA	Non Latching	-	PC Pin	Sealed - Flux Protection	Class F	8.4 VDC	1.2 VDC	15 ms	5 ms	-40°C ~ 105°C	Silver Tin Oxide (AgSnO)
ALZ52B12W RELAY GEN PURPOSE SPST 16A 12V Panasonic Electric Works	3,739	3.23	RFQ	Datasheet	Tray	ALZ	Active	Through Hole	12VDC	SPST-NO (1 Form A)	16 A	440VAC - Max	33.3 mA	Non Latching	-	PC Pin	Sealed - Fully	Class B	8.4 VDC	1.2 VDC	15 ms	5 ms	-40°C ~ 105°C	Silver Tin Oxide (AgSnO)
