Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation
FP10-250-B PWR XFMR LAMINATED 2.5VA TH Triad Magnetics	3,679	7.43	RFQ	Datasheet	Bulk	Flat Pack™	Active	Laminated Core	115V, 230V	Parallel 5V, Series 10V	Parallel 500mA, Series 250mA	Dual	Dual	No	2.5VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	16.51mm	2000Vrms
FP24-100-B PWR XFMR LAMINATED 2.5VA TH Triad Magnetics	2,559	7.43	RFQ	Datasheet	Bulk	Flat Pack™	Active	Laminated Core	115V, 230V	Parallel 12V, Series 24V	Parallel 200mA, Series 100mA	Dual	Dual	No	2.5VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	16.51mm	2000Vrms
FP30-85-B PWR XFMR LAMINATED 2.5VA TH Triad Magnetics	3,759	7.43	RFQ	Datasheet	Bulk	Flat Pack™	Active	Laminated Core	115V, 230V	Parallel 15V, Series 30V	Parallel 160mA, Series 80mA	Dual	Dual	No	2.5VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	16.51mm	2000Vrms
FP34-75-B PWR XFMR LAMINATED 2.5VA TH Triad Magnetics	3,115	7.43	RFQ	Datasheet	Bulk	Flat Pack™	Active	Laminated Core	115V, 230V	Parallel 17V, Series 34V	Parallel 150mA, Series 75mA	Dual	Dual	No	2.5VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	16.51mm	2000Vrms
FP20-125-B PWR XFMR LAMINATED 2.5VA TH Triad Magnetics	2,300	7.43	RFQ	Datasheet	Bulk	Flat Pack™	Active	Laminated Core	115V, 230V	Parallel 10V, Series 20V	Parallel 250mA, Series 125mA	Dual	Dual	No	2.5VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	16.51mm	2000Vrms
FP12-200 PWR XFMR LAMINATED 2.5VA TH Triad Magnetics	2,155	7.43	RFQ	Datasheet	Box	Flat Pack™	Active	Laminated Core	115V, 230V	Parallel 6.3V, Series 12.6V	Parallel 400mA, Series 200mA	Dual	Dual	No	2.5VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	16.51mm	2000Vrms
FP30-85 PWR XFMR LAMINATED 2.5VA TH Triad Magnetics	3,873	7.43	RFQ	Datasheet	Box	Flat Pack™	Active	Laminated Core	115V, 230V	Parallel 15V, Series 30V	Parallel 160mA, Series 80mA	Dual	Dual	No	2.5VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	16.51mm	2000Vrms
FP16-150-B PWR XFMR LAMINATED 2.5VA TH Triad Magnetics	2,902	7.43	RFQ	Datasheet	Bulk	Flat Pack™	Active	Laminated Core	115V, 230V	Parallel 8V, Series 16V	Parallel 300mA, Series 150mA	Dual	Dual	No	2.5VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	16.51mm	2000Vrms
FP56-45-B PWR XFMR LAMINATED 2.5VA TH Triad Magnetics	2,891	7.43	RFQ	Datasheet	Bulk	Flat Pack™	Active	Laminated Core	115V, 230V	Parallel 28V, Series 56V	Parallel 90mA, Series 45mA	Dual	Dual	No	2.5VA	Through Hole	PC Pin	47.63mm L x 39.67mm W	16.51mm	2000Vrms
FS20-055 PWR XFMR LAMINATED 1.1VA TH Triad Magnetics	3,110	7.51	RFQ	Datasheet	Box	Split Pack™	Active	Laminated Core	115V, 230V	Parallel 10V, Series 20V	Parallel 110mA, Series 55mA	Dual	Dual	No	1.1VA	Through Hole	PC Pin	34.93mm L x 28.56mm W	23.80mm	2500Vrms
FD4-36 PWR XFMR LAMINATED 6VA CHAS MT Triad Magnetics	2,886	7.53	RFQ	Datasheet	Box	Quick Pack	Active	Laminated Core	115V, 230V	36V	170mA	Dual	Single	Yes	6VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	65.07mm L x 31.75mm W	34.93mm	2500VAC

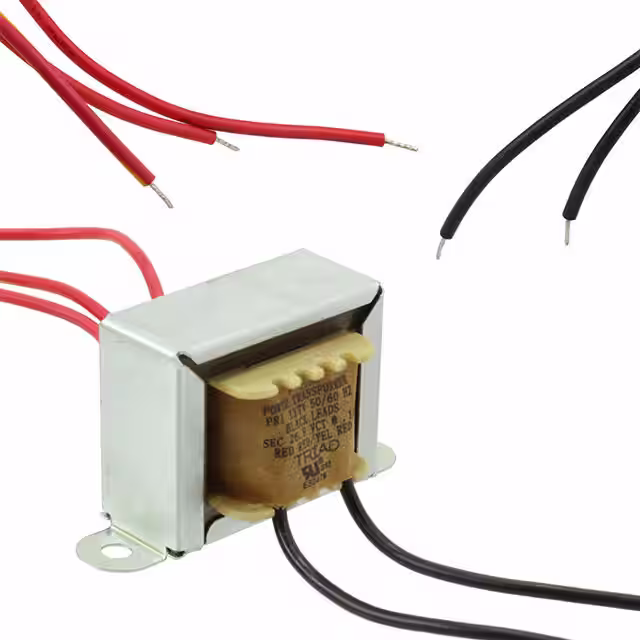

F-119X PWR XFMR LAMINATED 4.02VA CHAS Triad Magnetics	2,701	7.59	RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V	26.8V	150mA	Single	Single	Yes	4.02VA	Chassis Mount	Wire Leads	60.32mm L x 38.10mm W	34.93mm	1500Vrms
F-142XP PWR XFMR LAMINATED 4.5VA CHAS MT Triad Magnetics	2,924	8.03	RFQ	Datasheet	Box	Single Primary	Active	Laminated Core	115V	Parallel 7.5V, Series 15V	Parallel 600mA, Series 300mA	Single	Dual	No	4.5VA	Chassis Mount	Wire Leads	60.32mm L x 31.75mm W	36.50mm	1500Vrms

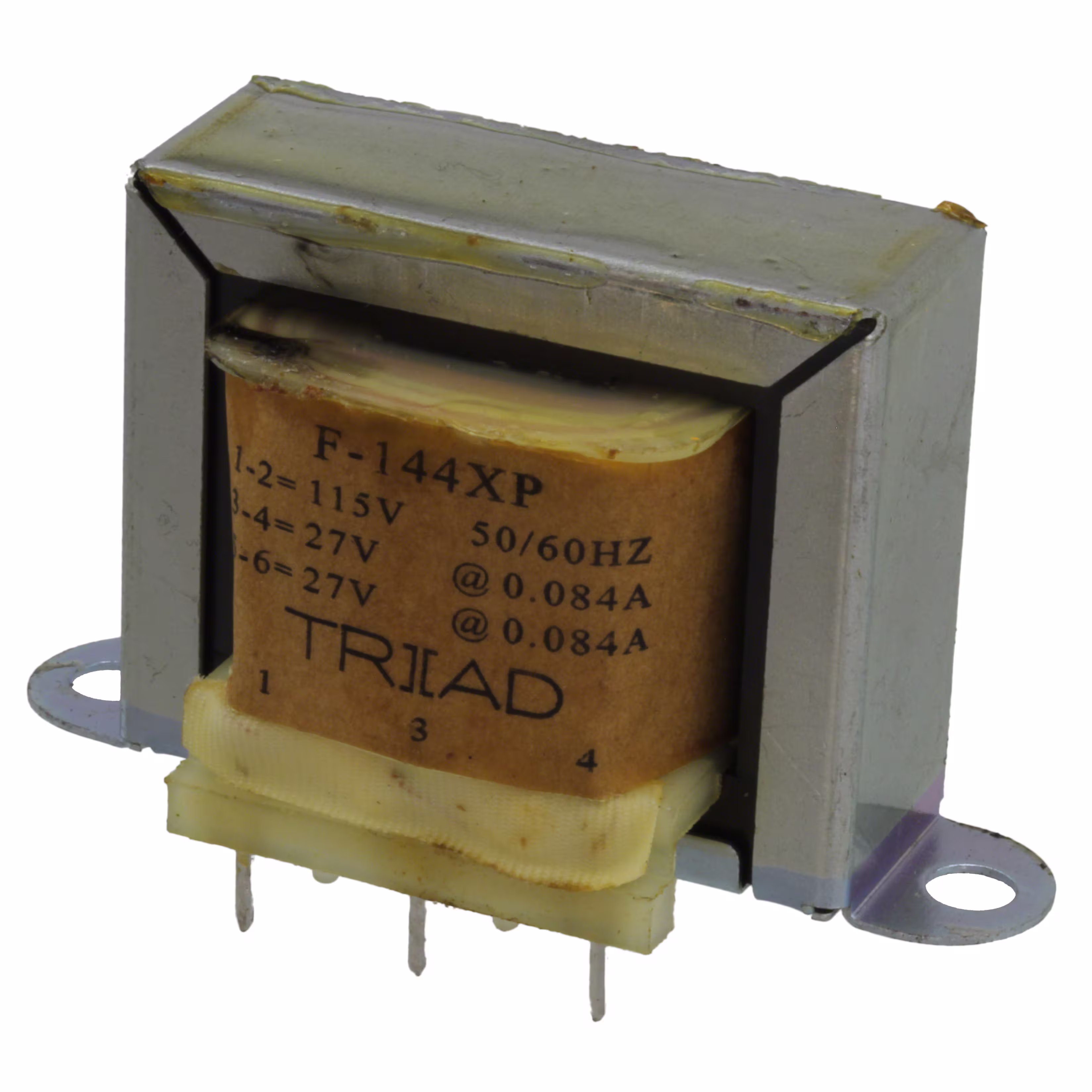

F-144XP PWR XFMR LAMINATED 4.5VA CHAS MT Triad Magnetics	2,345	8.03	RFQ	Datasheet	Box	Single Primary	Active	Laminated Core	115V	Parallel 27V, Series 54V	Parallel 168mA, Series 84mA	Single	Dual	No	4.5VA	Chassis Mount	PC Pin	60.32mm L x 31.75mm W	36.50mm	1500Vrms

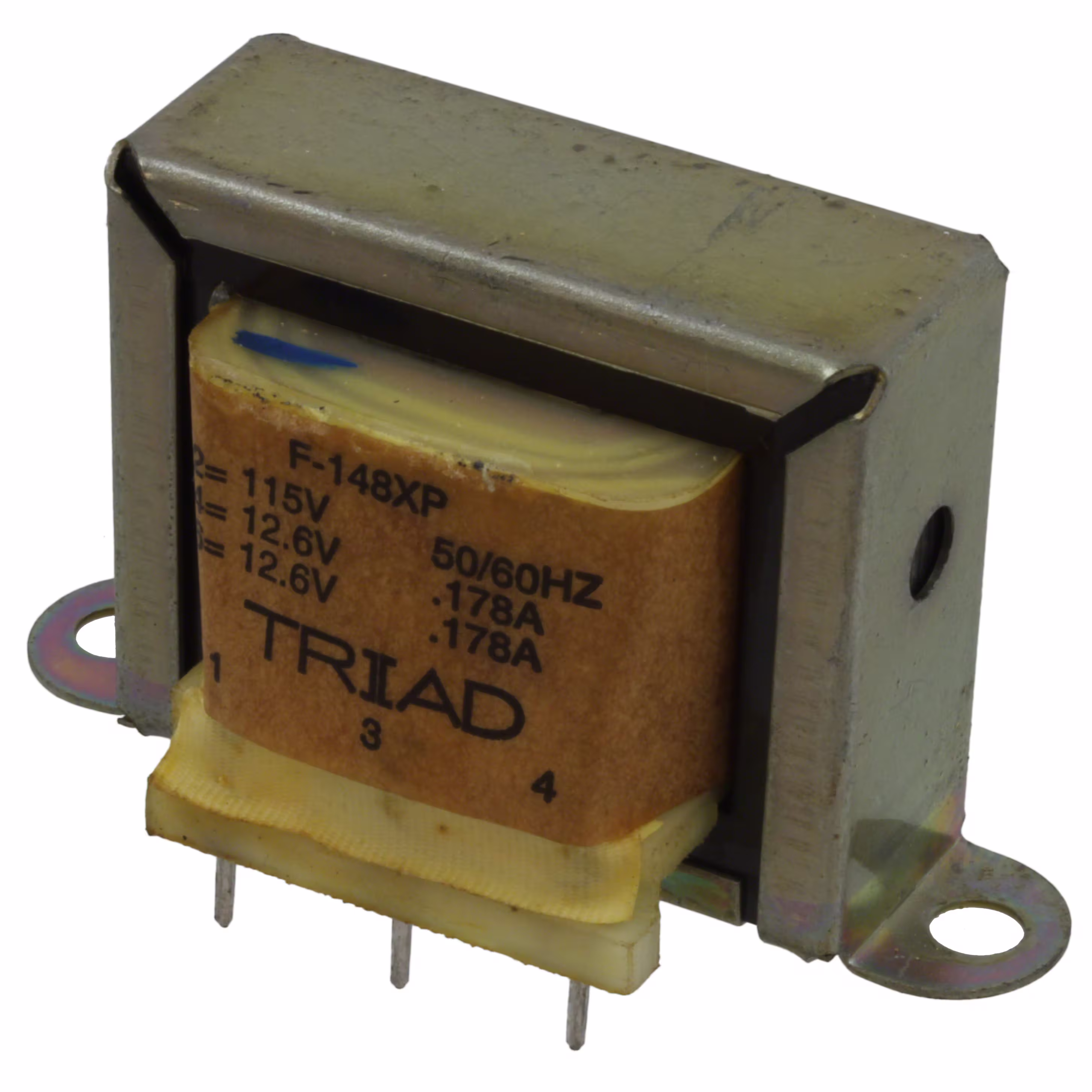

F-148XP PWR XFMR LAMINATED 4.5VA CHAS MT Triad Magnetics	2,952	8.03	RFQ	Datasheet	Box	Single Primary	Active	Laminated Core	115V	Parallel 12.6V, Series 25.2V	Parallel 356mA, Series 178mA	Single	Dual	No	4.5VA	Chassis Mount	PC Pin	60.32mm L x 31.75mm W	36.50mm	1500Vrms
F10-600 PWR XFMR LAMINATED 6VA TH Triad Magnetics	2,940	8.21	RFQ	Datasheet	Box	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 5V, Series 10V	Parallel 1.2A, Series 600mA	Single	Dual	No	6VA	Through Hole	PC Pin	41.28mm L x 33.32mm W	33.32mm	2500Vrms
F24-250 PWR XFMR LAMINATED 6VA TH Triad Magnetics	3,257	8.21	RFQ	Datasheet	Box	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 12V, Series 24V	Parallel 500mA, Series 250mA	Single	Dual	No	6VA	Through Hole	PC Pin	41.28mm L x 33.32mm W	33.32mm	2500Vrms
F28-200 PWR XFMR LAMINATED 6VA TH Triad Magnetics	3,464	8.21	RFQ	Datasheet	Box	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 14V, Series 28V	Parallel 400mA, Series 200mA	Single	Dual	No	6VA	Through Hole	PC Pin	41.28mm L x 33.32mm W	33.32mm	2500Vrms

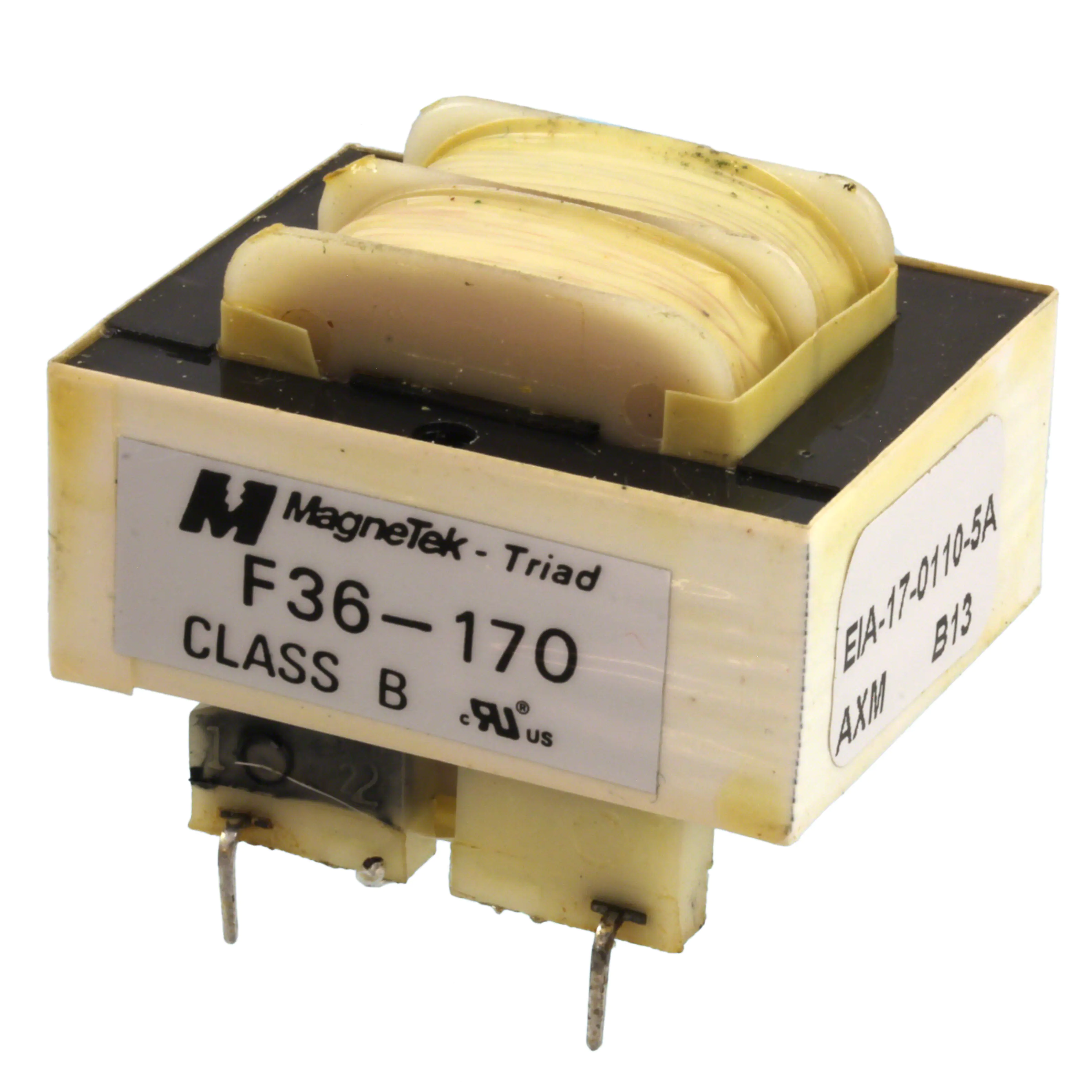

F36-170 PWR XFMR LAMINATED 6VA TH Triad Magnetics	3,550	8.21	RFQ	Datasheet	Box	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 18V, Series 36V	Parallel 340mA, Series 170mA	Single	Dual	No	6VA	Through Hole	PC Pin	41.28mm L x 33.32mm W	33.32mm	2500Vrms
F48-125 PWR XFMR LAMINATED 6VA TH Triad Magnetics	3,357	8.21	RFQ	Datasheet	Box	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 24V, Series 48V	Parallel 250mA, Series 125mA	Single	Dual	No	6VA	Through Hole	PC Pin	41.28mm L x 33.32mm W	33.32mm	2500Vrms
