Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation

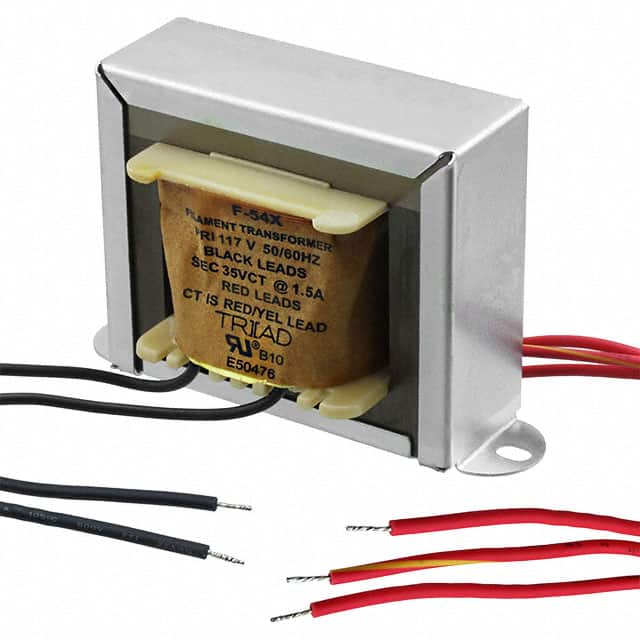

F-54X PWR XFMR LAMINATED 52.5VA CHAS Triad Magnetics	3,088	23.04	RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V	35V	800mA	Single	Single	Yes	52.5VA	Chassis Mount	Wire Leads	101.60mm L x 57.15mm W	65.86mm	1500Vrms
VPM240-100 PWR XFMR TORO 25VA CHAS MT Triad Magnetics	2,525	39.04	RFQ	Datasheet	Box	Toroidal Medical, VPM	Active	Toroidal	100V, 120V, 220V, 240V	Parallel 120V, Series 240V	Parallel 208mA, Series 104mA	Dual, Multiple Taps	Dual	No	25VA	Chassis Mount	Wire Leads	84.00mm Dia	37.00mm	4000Vrms
VPM30-5330 PWR XFMR TORO 160VA CHAS MT Triad Magnetics	2,431	75.87	RFQ	Datasheet	Box	Toroidal Medical, VPM	Active	Toroidal	100V, 120V, 220V, 240V	Parallel 15V, Series 30V	Parallel 10.66A, Series 5.33A	Dual, Multiple Taps	Dual	No	160VA	Chassis Mount	Wire Leads	113.00mm Dia	52.00mm	4000Vrms
VPM240-31200 PWR XFMR TORO 7500VA CHAS MT Triad Magnetics	2,800	780.95	RFQ	Datasheet	Bulk	Toroidal Medical, VPM	Active	Toroidal	208V, 240V	Parallel 120V, Series 240V	Parallel 62.4A, Series 31.2A	Dual, Multiple Taps	Dual	No	7500VA	Chassis Mount	Wire Leads	330.00mm Dia	140.00mm	4000Vrms
VPP20-1000-B PWR XFMR LAMINATED 20VA TH Triad Magnetics	3,306	9.95	RFQ	Datasheet	Bulk	PC Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 10V, Series 20V	Parallel 2A, Series 1A	Dual	Dual	No	20VA	Through Hole	PC Pin	57.15mm L x 47.63mm W	41.28mm	4000Vrms
VPP24-210-B PWR XFMR LAMINATED 5VA TH Triad Magnetics	2,162	5.77	RFQ	Datasheet	Bulk	PC Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 12V, Series 24V	Parallel 420mA, Series 210mA	Dual	Dual	No	5VA	Through Hole	PC Pin	41.28mm L x 33.32mm W	34.93mm	4000Vrms
FS36-170-C2 PWR XFMR LAMINATED 6VA TH Triad Magnetics	2,245	5.93	RFQ	Datasheet	Tube	Split Pack™, Class 2/3, FS	Active	Laminated Core	115V, 230V	Parallel 18V, Series 36V	Parallel 340mA, Series 170mA	Dual	Dual	No	6VA	Through Hole	PC Pin	41.28mm L x 33.32mm W	33.32mm	4200Vrms
FS56-110-C2 PWR XFMR LAMINATED 6VA TH Triad Magnetics	2,785	5.93	RFQ	Datasheet	Tube	Split Pack™, Class 2/3, FS	Active	Laminated Core	115V, 230V	Parallel 28V, Series 56V	Parallel 220mA, Series 110mA	Dual	Dual	No	6VA	Through Hole	PC Pin	41.28mm L x 33.32mm W	33.32mm	4200Vrms
F10-2000-C2 PWR XFMR LAMINATED 20VA TH Triad Magnetics	3,239	9.79	RFQ	Datasheet	Tray	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 5V, Series 10V	Parallel 4A, Series 2A	Single	Dual	No	20VA	Through Hole	PC Pin	57.15mm L x 47.63mm W	36.50mm	2500Vrms
FS56-020-C2 PWR XFMR LAMINATED 1.1VA TH Triad Magnetics	3,024	3.25	RFQ	Datasheet	Tube	Split Pack™, Class 2/3, FS	Active	Laminated Core	115V, 230V	Parallel 28V, Series 56V	Parallel 40mA, Series 20mA	Dual	Dual	No	1.1VA	Through Hole	PC Pin	66.68mm L x 55.55mm W	39.67mm	4200Vrms
FS36-030-C2 PWR XFMR LAMINATED 1.1VA TH Triad Magnetics	2,765	3.25	RFQ	Datasheet	Tube	Split Pack™, Class 2/3, FS	Active	Laminated Core	115V, 230V	Parallel 18V, Series 36V	Parallel 60mA, Series 30mA	Dual	Dual	No	1.1VA	Through Hole	PC Pin	34.93mm L x 28.58mm W	23.80mm	4200Vrms
FS48-023-C2 PWR XFMR LAMINATED 1.1VA TH Triad Magnetics	2,752	3.25	RFQ	Datasheet	Tube	Split Pack™, Class 2/3, FS	Active	Laminated Core	115V, 230V	Parallel 24V, Series 48V	Parallel 46mA, Series 23mA	Dual	Dual	No	1.1VA	Through Hole	PC Pin	34.93mm L x 28.58mm W	23.80mm	4200Vrms
F36-030-C2 PWR XFMR LAMINATED 1.1VA TH Triad Magnetics	3,070	3.37	RFQ	Datasheet	Tray	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 18V, Series 36V	Parallel 60mA, Series 30mA	Single	Dual	No	1.1VA	Through Hole	PC Pin	34.93mm L x 28.58mm W	23.80mm	2500Vrms
F48-023-C2 PWR XFMR LAMINATED 1.1VA TH Triad Magnetics	2,953	3.37	RFQ	Datasheet	Tube	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 24V, Series 48V	Parallel 46mA, Series 23mA	Single	Dual	No	1.1VA	Through Hole	PC Pin	34.93mm L x 28.58mm W	23.80mm	2500Vrms
F56-020-C2 PWR XFMR LAMINATED 1.1VA TH Triad Magnetics	3,556	3.37	RFQ	Datasheet	Tray	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 28V, Series 56V	Parallel 40mA, Series 20mA	Single	Dual	No	1.1VA	Through Hole	PC Pin	34.93mm L x 28.58mm W	23.80mm	2500Vrms
F20-120-C2 PWR XFMR LAMINATED 2.5VA TH Triad Magnetics	2,923	3.38	RFQ	Datasheet	Tray	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 10V, Series 20V	Parallel 240mA, Series 120mA	Single	Dual	No	2.5VA	Through Hole	PC Pin	34.93mm L x 28.58mm W	30.15mm	2500Vrms
F36-065-C2 PWR XFMR LAMINATED 2.4VA TH Triad Magnetics	3,945	3.38	RFQ	Datasheet	Tray	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 18V, Series 36V	Parallel 130mA, Series 65mA	Single	Dual	No	2.4VA	Through Hole	PC Pin	34.93mm L x 28.58mm W	30.15mm	4200Vrms
F48-050-C2 PWR XFMR LAMINATED 2.5VA TH Triad Magnetics	2,955	3.38	RFQ	Datasheet	Tray	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 24V, Series 48V	Parallel 100mA, Series 50mA	Single	Dual	No	2.5VA	Through Hole	PC Pin	34.93mm L x 28.58mm W	30.15mm	2500Vrms
F56-045-C2 PWR XFMR LAMINATED 2.5VA TH Triad Magnetics	2,939	3.38	RFQ	Datasheet	Tray	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 28 V, Series 56V	Parallel 90mA, Series 45mA	Single	Dual	No	2.5VA	Through Hole	PC Pin	34.93mm L x 28.58mm W	30.15mm	2500Vrms
FS36-065-C2 PWR XFMR LAMINATED 2.4VA TH Triad Magnetics	3,833	3.70	RFQ	Datasheet	Tube	Split Pack™, Class 2/3, FS	Active	Laminated Core	115V, 230V	Parallel 18V, Series 36V	Parallel 130mA, Series 65mA	Dual	Dual	No	2.4VA	Through Hole	PC Pin	34.93mm L x 28.58mm W	30.15mm	4200Vrms
