Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation
FS56-045-C2 PWR XFMR LAMINATED 2.4VA TH Triad Magnetics	2,349	3.70	RFQ	Datasheet	Tube	Split Pack™, Class 2/3, FS	Active	Laminated Core	115V, 230V	Parallel 28V, Series 56V	Parallel 90mA, Series 45mA	Dual	Dual	No	2.4VA	Through Hole	PC Pin	34.93mm L x 28.58mm W	30.15mm	4200Vrms

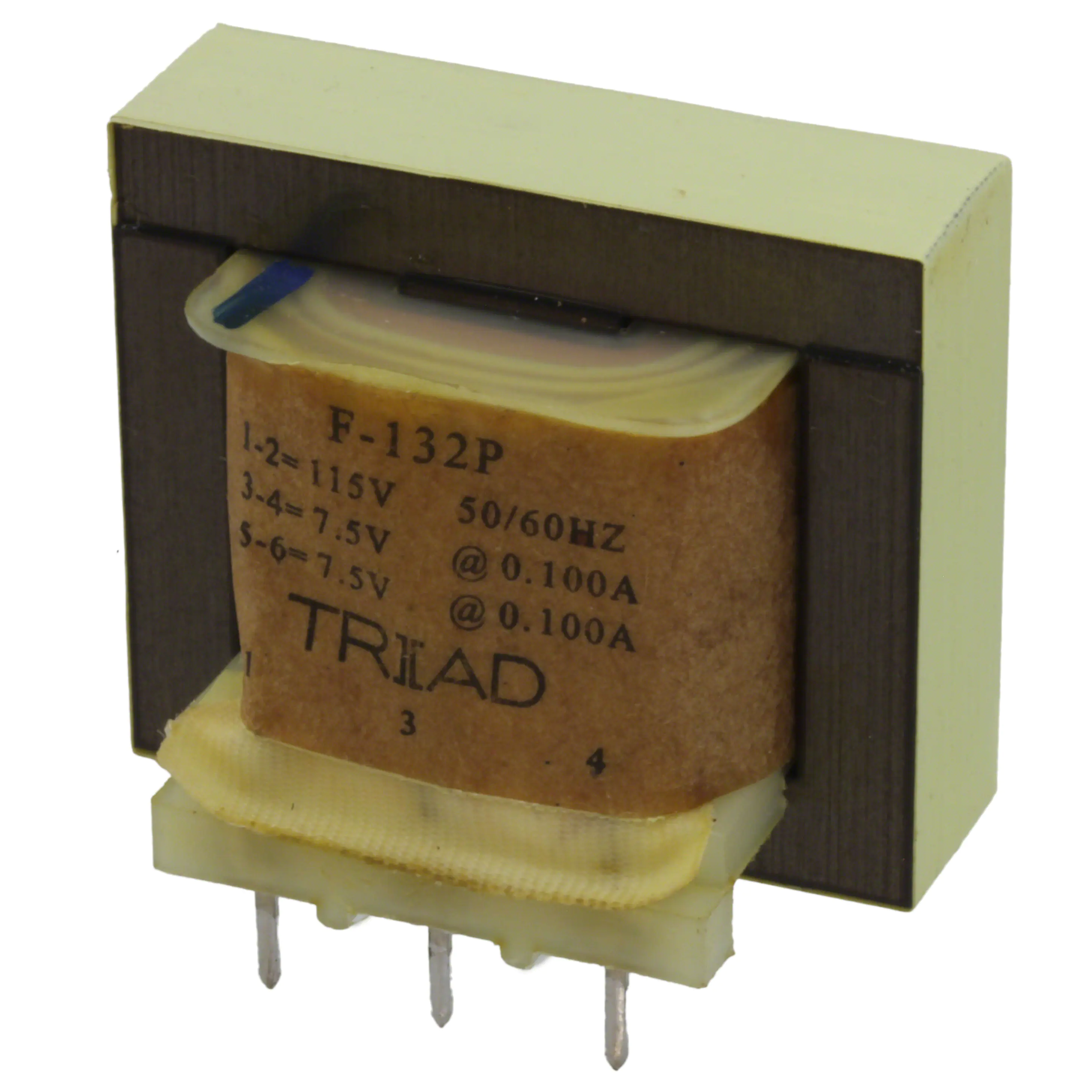

F-132P PWR XFMR LAMINATED 1.5VA TH Triad Magnetics	2,305	5.39	RFQ	Datasheet	Box	Single Primary	Active	Laminated Core	115V	Parallel 7.5V, Series 15V	Parallel 200mA, Series 100mA	Single	Dual	No	1.5VA	Through Hole	PC Pin	35.31mm L x 39.67mm W	30.15mm	1500Vrms
F-137P PWR XFMR LAMINATED 1.5VA TH Triad Magnetics	2,606	5.39	RFQ	Datasheet	Box	Single Primary	Active	Laminated Core	115V	Parallel 20V, Series 40V	Parallel 76mA, Series 38mA	Single	Dual	No	1.5VA	Through Hole	PC Pin	35.31mm L x 39.67mm W	30.15mm	1500Vrms

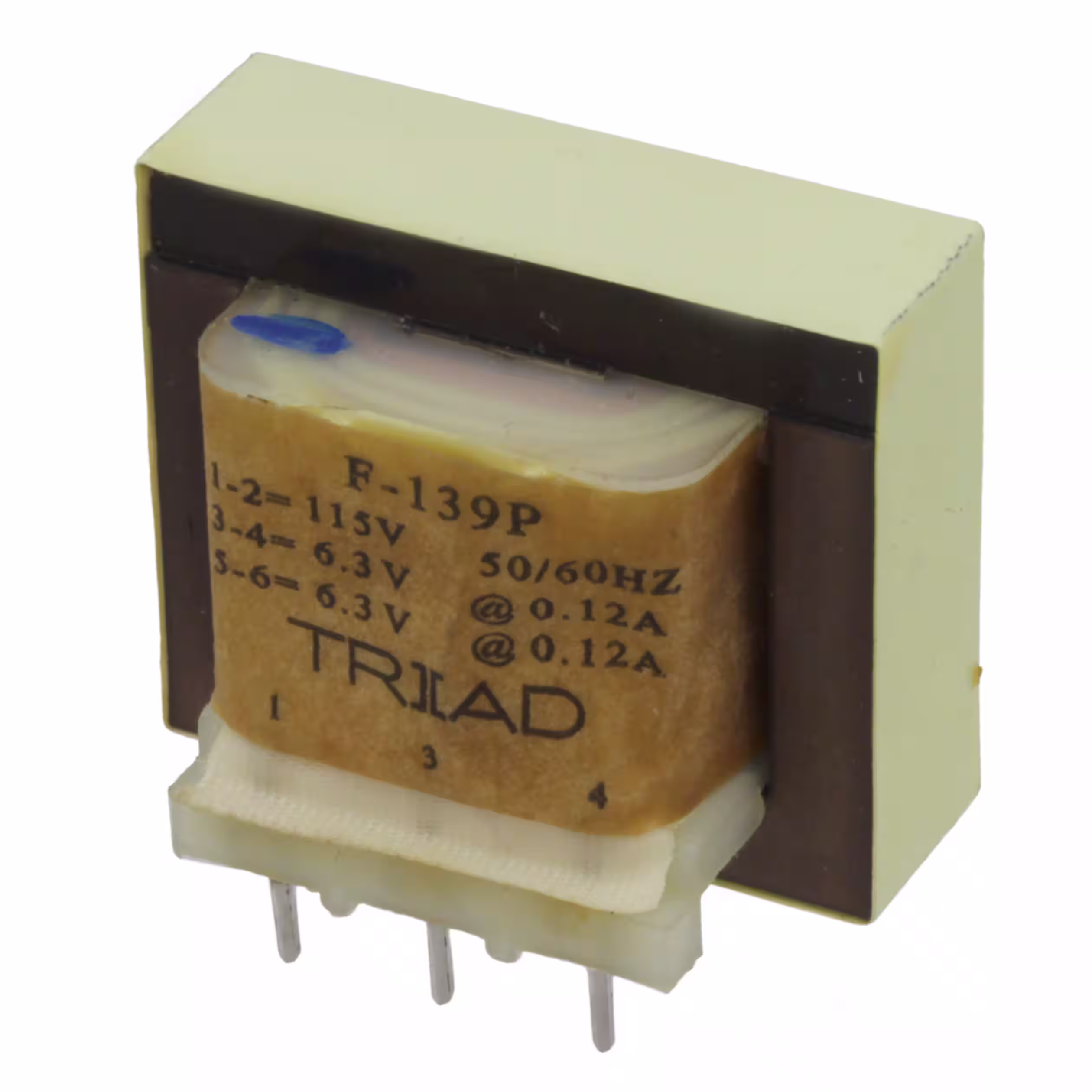

F-139P PWR XFMR LAMINATED 1.5VA TH Triad Magnetics	3,739	6.01	RFQ	Datasheet	Bulk,Box	Single Primary	Active	Laminated Core	115V	Parallel 6.3V, Series 12.6V	Parallel 240mA, Series 120mA	Single	Dual	No	1.5VA	Through Hole	PC Pin	35.31mm L x 39.67mm W	30.15mm	1500Vrms
F-160P PWR XFMR LAMINATED 1.5VA TH Triad Magnetics	2,114	5.39	RFQ	Datasheet	Box	Single Primary	Active	Laminated Core	115V	Parallel 17V, Series 34V	Parallel 90mA, Series 45mA	Single	Dual	No	1.5VA	Through Hole	PC Pin	35.31mm L x 39.67mm W	30.15mm	1500Vrms
F3-10-B PWR XFMR LAMINATED 2.4VA CHAS MT Triad Magnetics	2,834	5.58	RFQ	Datasheet	Bulk	Quick Pack	Active	Laminated Core	115V	10V	250mA	Single	Single	Yes	2.4VA	Chassis Mount	Solder, Quick Connect	52.37mm L x 44.45mm W	30.15mm	2500VAC
VPP10-250-B PWR XFMR LAMINATED 2.5VA TH Triad Magnetics	3,074	5.69	RFQ	Datasheet	Bulk	PC Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 5V, Series 10V	Parallel 500mA, Series 250mA	Dual	Dual	No	2.5VA	Through Hole	PC Pin	41.28mm L x 33.32mm W	28.58mm	4000Vrms
VPP12-200-B PWR XFMR LAMINATED 2.5VA TH Triad Magnetics	3,627	5.69	RFQ	Datasheet	Bulk	PC Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 6.3V, Series 12.6V	Parallel 400mA, Series 200mA	Dual	Dual	No	2.5VA	Through Hole	PC Pin	41.28mm L x 33.32mm W	28.58mm	4000Vrms
F10-600-C2 PWR XFMR LAMINATED 6VA TH Triad Magnetics	2,910	5.73	RFQ	Datasheet	Tray	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 5V, Series 10V	Parallel 1.2A, Series 600mA	Single	Dual	No	6VA	Through Hole	PC Pin	41.28mm L x 33.32mm W	33.32mm	2500Vrms
F16-400-C2 PWR XFMR LAMINATED 6VA TH Triad Magnetics	3,672	5.73	RFQ	Datasheet	Tray	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 8V, Series 16V	Parallel 800mA, Series 400mA	Single	Dual	No	6VA	Through Hole	PC Pin	41.28mm L x 33.32mm W	33.32mm	4200Vrms
F20-300-C2 PWR XFMR LAMINATED 6VA TH Triad Magnetics	3,627	5.73	RFQ	Datasheet	Tray	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 10V, Series 20V	Parallel 600mA, Series 300mA	Single	Dual	No	6VA	Through Hole	PC Pin	41.28mm L x 33.32mm W	33.32mm	2500Vrms
F36-170-C2 PWR XFMR LAMINATED 6VA TH Triad Magnetics	3,121	5.73	RFQ	Datasheet	Tray	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 18V, Series 36V	Parallel 340mA, Series 170mA	Single	Dual	No	6VA	Through Hole	PC Pin	41.28mm L x 33.32mm W	33.32mm	2500Vrms
F48-125-C2 PWR XFMR LAMINATED 6VA TH Triad Magnetics	2,723	5.73	RFQ	Datasheet	Tray	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 24V, Series 48V	Parallel 250mA, Series 125mA	Single	Dual	No	6VA	Through Hole	PC Pin	41.28mm L x 33.32mm W	33.32mm	2500Vrms
F56-110-C2 PWR XFMR LAMINATED 6VA TH Triad Magnetics	2,253	5.73	RFQ	Datasheet	Tray	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 28 V, Series 56V	Parallel 220mA, Series 110mA	Single	Dual	No	6VA	Through Hole	PC Pin	41.28mm L x 33.32mm W	33.32mm	2500Vrms
FS20-300-C2 PWR XFMR LAMINATED 6VA TH Triad Magnetics	3,094	5.93	RFQ	Datasheet	Tube	Split Pack™, Class 2/3, FS	Active	Laminated Core	115V, 230V	Parallel 10V, Series 20V	Parallel 600mA, Series 300mA	Dual	Dual	No	6VA	Through Hole	PC Pin	41.28mm L x 33.32mm W	33.32mm	4200Vrms
FS16-070 PWR XFMR LAMINATED 1.1VA TH Triad Magnetics	2,714	5.94	RFQ	Datasheet	Box	Split Pack™	Active	Laminated Core	115V, 230V	Parallel 8V, Series 16V	Parallel 140mA, Series 70mA	Dual	Dual	No	1.1VA	Through Hole	PC Pin	34.93mm L x 28.56mm W	23.80mm	2500Vrms
FS12-090-B PWR XFMR LAMINATED 1.1VA TH Triad Magnetics	2,286	5.94	RFQ	Datasheet	Bulk	Split Pack™	Active	Laminated Core	115V, 230V	Parallel 6.3V, Series 12.6V	Parallel 180mA, Series 90mA	Dual	Dual	No	1.1VA	Through Hole	PC Pin	34.93mm L x 28.56mm W	23.80mm	2500Vrms
VPP10-500-B PWR XFMR LAMINATED 5VA TH Triad Magnetics	3,290	6.05	RFQ	Datasheet	Bulk	PC Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 5V, Series 10V	Parallel 1A, Series 500mA	Dual	Dual	No	5VA	Through Hole	PC Pin	41.28mm L x 33.32mm W	34.93mm	4000Vrms
VPP28-180-B PWR XFMR LAMINATED 5VA TH Triad Magnetics	3,592	6.05	RFQ	Datasheet	Bulk	PC Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 14V, Series 28V	Parallel 360mA, Series 180mA	Dual	Dual	No	5VA	Through Hole	PC Pin	41.28mm L x 33.32mm W	34.93mm	4000Vrms
FS28-85 PWR XFMR LAMINATED 2.4VA TH Triad Magnetics	3,857	6.40	RFQ	Datasheet	Box	Split Pack™	Active	Laminated Core	115V, 230V	Parallel 14V, Series 28V	Parallel 170mA, Series 85mA	Dual	Dual	No	2.4VA	Through Hole	PC Pin	34.93mm L x 28.56mm W	30.15mm	2500Vrms
