| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DMG4N60SCTMOSFET N-CH 600V 4.5A TO220AB |
3,995 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 4.5A (Ta) | 10V | 2.5Ohm @ 2A, 10V | 4.5V @ 250µA | 14.3 nC @ 10 V | ±30V | 532 pF @ 25 V | - | 113W (Ta) | -55°C ~ 150°C (TJ) | Through Hole |
|

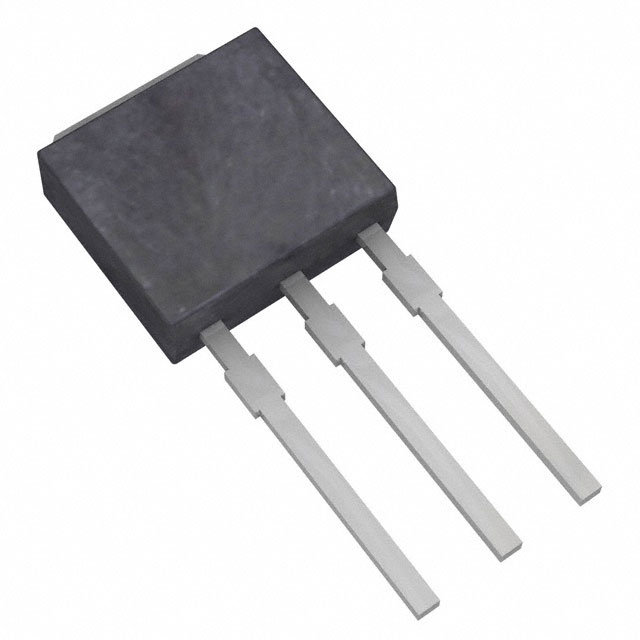

DMG4N60SJ3MOSFET N-CH 600V 3A TO251 |
2,402 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 3A (Tc) | 10V | 2.5Ohm @ 2A, 10V | 4.5V @ 250µA | 14.3 nC @ 10 V | ±30V | 532 pF @ 25 V | - | 41W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
DMP6185SE-7MOSFET P-CH 60V 3A SOT223 |
2,024 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Discontinued at Mosen | P-Channel | MOSFET (Metal Oxide) | 60 V | 3A (Ta) | 4.5V, 10V | 150mOhm @ 2.2A, 10V | 3V @ 250µA | 14 nC @ 10 V | ±20V | 708 pF @ 30 V | - | 1.2W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMTH10H030LK3-13MOSFET N-CH 100V 28A TO252 |
2,912 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 28A (Tc) | 6V, 10V | 30mOhm @ 20A, 10V | 3.5V @ 250µA | 33.3 nC @ 10 V | ±20V | 1871 pF @ 50 V | - | 2.1W (Ta) | -55°C ~ 175°C (TJ) | Surface Mount |
|
ZXMN3A02N8TCMOSFET N-CH 30V 7.3A 8SO |
3,943 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 7.3A (Ta) | 4.5V, 10V | 25mOhm @ 12A, 10V | 1V @ 250µA | 26.8 nC @ 10 V | ±20V | 1400 pF @ 25 V | - | 1.56W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
ZXMP6A16GTAMOSFET P-CH 60V SOT223 |
2,605 | 0.00 |
RFQ |
Tape & Reel (TR) | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 60 V | - | - | - | - | - | - | - | - | - | - | Surface Mount | |
|
|
DMG10N60SCTMOSFET N-CH 600V 12A TO220AB |
2,898 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 12A (Tc) | 10V | 750mOhm @ 5A, 10V | 4V @ 250µA | 35 nC @ 10 V | ±30V | 1587 pF @ 16 V | - | 178W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
DMG3N60SCTMOSFET N-CH 600V 3.3A TO220AB |
2,202 | 0.00 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 3.3A (Tc) | 10V | 3.5Ohm @ 1.5A, 10V | 4V @ 250µA | 12.6 nC @ 10 V | ±30V | 354 pF @ 25 V | - | 104W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
DMG3N60SJ3MOSFET N-CH 650V 2.8A TO251 |
2,317 | 0.00 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 2.8A (Tc) | 10V | 3.5Ohm @ 1.5A, 10V | 4V @ 250µA | 12.6 nC @ 10 V | ±30V | 354 pF @ 25 V | - | 41W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
DMG7N65SCTMOSFET N-CH 650V 7.7A TO220AB |
2,978 | 0.00 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 7.7A (Tc) | 10V | 1.4Ohm @ 2.5A, 10V | 4V @ 250µA | 25.2 nC @ 10 V | ±30V | 886 pF @ 50 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
DMG7N65SCTIMOSFET N-CH 650V 7.7A ITO220AB |
3,938 | 0.00 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 7.7A (Tc) | 10V | 1.4Ohm @ 2.5A, 10V | 4V @ 250µA | 25.2 nC @ 10 V | ±30V | 886 pF @ 50 V | - | 28W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
DMG7N65SJ3MOSFET N-CH 650V 5.5A TO251 |
2,756 | 0.00 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 5.5A (Tc) | 10V | 1.4Ohm @ 2.5A, 10V | 4V @ 250µA | 25 nC @ 10 V | ±30V | 886 pF @ 50 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
DMG8N65SCTMOSFET N-CH 650V 8A TO220AB |
3,967 | 0.00 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 8A (Tc) | 10V | 1.3Ohm @ 4A, 10V | 4V @ 250µA | 30 nC @ 10 V | ±30V | 1217 pF @ 25 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
DMN3110LCP3-7MOSFET N-CH 30V 3.2A 3DFN |
3,567 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 3.2A (Ta) | 1.8V, 8V | 69mOhm @ 500mA, 8V | 1.1V @ 250µA | 1.52 nC @ 4.5 V | 12V | 150 pF @ 15 V | - | 1.38W | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMN60H3D5SK3-13MOSFET N-CH 600V 2.8A TO252 |
3,933 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 2.8A (Tc) | 10V | 3.5Ohm @ 1.5A, 10V | 4V @ 250µA | 12.6 nC @ 10 V | ±30V | 354 pF @ 25 V | - | 41W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMN60H4D5SK3-13MOSFET N-CH 600V 2.5A TO252 |
2,966 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 2.5A (Tc) | 10V | 4.5Ohm @ 1A, 10V | 4V @ 250µA | 8.2 nC @ 10 V | ±30V | 273.5 pF @ 25 V | - | 41W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMP2042UCB4-7MOSFET P-CH 20V 4.6A U-WLB1010-4 |
3,029 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 4.6A (Ta) | 2.5V, 4.5V | 45mOhm @ 1A, 4.5V | 1.2V @ 250µA | 2.5 nC @ 4.5 V | -6V | 218 pF @ 10 V | - | 1.4W | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMJ70H1D0SV3MOSFET N-CHANNEL 700V 6A TO251 |
2,260 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 700 V | 6A (Tc) | 10V | 1Ohm @ 1.5A, 10V | 4V @ 250µA | 12.8 nC @ 10 V | ±30V | 420 pF @ 50 V | - | 104W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
DMJ70H1D4SV3MOSFET N-CHANNEL 700V 5A TO251 |
3,874 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 700 V | 5A (Tc) | 10V | 1.5Ohm @ 1A, 10V | 4V @ 250µA | 7.5 nC @ 10 V | ±30V | 342 pF @ 50 V | - | 78W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
DMJ70H1D5SV3MOSFET N-CHANNEL 700V 5A TO251 |
2,591 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 700 V | 5A (Tc) | 10V | 1.5Ohm @ 1A, 10V | 4V @ 250µA | 9.8 nC @ 10 V | ±30V | 316 pF @ 50 V | - | 78W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
