| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DMJ70H601SK3-13MOSFET N-CHANNEL 700V 8A TO252 |
3,334 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 700 V | 8A (Tc) | 10V | 600mOhm @ 2.1A, 10V | 4V @ 250µA | 20.9 nC @ 10 V | ±30V | 686 pF @ 50 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMJ70H601SV3MOSFET N-CHANNEL 700V 8A TO251 |
2,895 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 700 V | 8A (Tc) | 10V | 600mOhm @ 2.1A, 10V | 4V @ 250µA | 20.9 nC @ 10 V | ±30V | 686 pF @ 50 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
DMN7022LFGQ-13MOSFET N-CH 75V 23A POWERDI3333 |
2,476 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 23A (Tc) | 4.5V, 10V | 22mOhm @ 7.2A, 10V | 3V @ 250µA | 56.5 nC @ 10 V | ±20V | 2737 pF @ 35 V | - | 2W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMN7022LFGQ-7MOSFET N-CH 75V 23A POWERDI3333 |
3,694 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 23A (Tc) | 4.5V, 10V | 22mOhm @ 7.2A, 10V | 3V @ 250µA | 56.5 nC @ 10 V | ±20V | 2737 pF @ 35 V | - | 2W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMG9N65CTMOSFET N-CH 650V 9A TO220AB |
2,256 | 1.43 |
RFQ |
Datasheet |
Tube,Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 9A (Tc) | 10V | 1.3Ohm @ 4.5A, 10V | 5V @ 250µA | 39 nC @ 10 V | ±30V | 2310 pF @ 25 V | - | 165W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
DMS3016SFG-7MOSFET N-CH 30V 7A POWERDI3333-8 |
3,247 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 7A (Ta) | 4.5V, 10V | 13mOhm @ 11.2A, 10V | 2.2V @ 250µA | 44.6 nC @ 10 V | ±12V | 1886 pF @ 15 V | Schottky Diode (Body) | 980mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMG4N65CTIMOSFET N-CH 650V 4A ITO220AB |
3,368 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 650 V | 4A (Tc) | 10V | 3Ohm @ 2A, 10V | 5V @ 250µA | 13.5 nC @ 10 V | ±30V | 900 pF @ 25 V | - | 8.35W (Ta) | -55°C ~ 150°C (TJ) | Through Hole |
|
DMS3016SSS-13MOSFET N-CH 30V 9.8A 8SO |
2,806 | 0.44 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 9.8A (Ta) | 4.5V, 10V | 13mOhm @ 9.8A, 10V | 2.3V @ 250µA | 43 nC @ 10 V | ±12V | 1849 pF @ 15 V | Schottky Diode (Body) | 1.54W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMP32D5LFA-7BMOSFET P-CH 30V 300MA 3DFN |
7,458 | 0.37 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 300mA (Ta) | 1.8V, 4.5V | 1.5Ohm @ 200mA, 4.5V | 1.2V @ 250µA | 0.7 nC @ 4.5 V | ±8V | 40.9 pF @ 15 V | - | 360mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMP3098LDM-7MOSFET P-CH 30V 4A SOT-26 |
2,338 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 4A (Ta) | 4.5V, 10V | 65mOhm @ 4A, 10V | 2.1V @ 250µA | 7.8 nC @ 10 V | ±20V | 336 pF @ 25 V | - | 1.25W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|

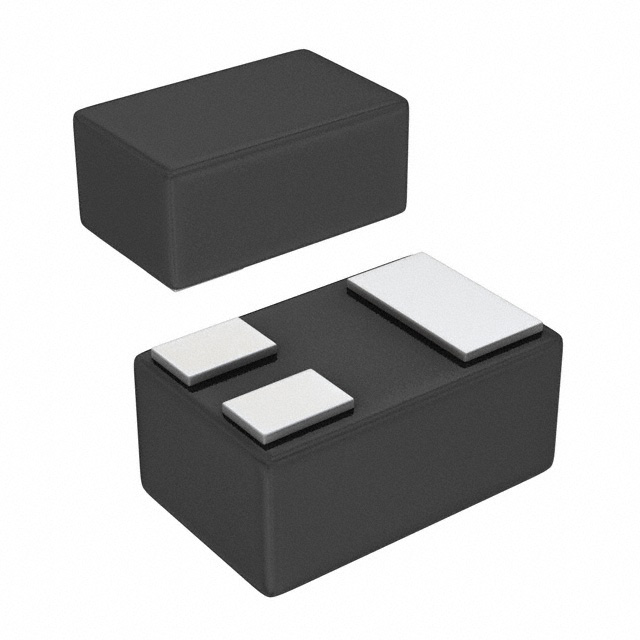

DMP2088LCP3-7MOSFET P-CH 20V 2.9A X2DSN1006-3 |
3,781 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 2.9A (Ta) | 1.8V, 8V | 88mOhm @ 500mA, 8V | 1.2V @ 250µA | 1.5 nC @ 4.5 V | -12V | 160 pF @ 10 V | - | 1.13W | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMG7401SFGQ-7MOSFET P-CH 30V 9.8A PWRDI3333-8 |
2,023 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 9.8A (Ta) | 4.5V, 20V | 11mOhm @ 12A, 20V | 3V @ 250µA | 58 nC @ 10 V | ±25V | 2987 pF @ 15 V | - | 940mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMP2541UCB9-7MOSFET P-CH 25V 3.9A U-WLB1515-9 |
2,773 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 25 V | 3.9A (Ta) | 1.8V, 4.5V | 40mOhm @ 2A, 4.5V | 1.1V @ 250µA | 7 nC @ 4.5 V | -6V | 850 pF @ 10 V | - | 940mW (Ta) | -55°C ~ 155°C (TJ) | Surface Mount |
|
|
DMP3056LVT-13MOSFET P-CH 30V 4.3A TSOT-26 |
3,793 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 4.3A (Ta) | 4.5V, 10V | 50mOhm @ 6A, 10V | 2.1V @ 250µA | 11.8 nC @ 10 V | ±25V | 642 pF @ 25 V | - | 1.38W | -55°C ~ 150°C (TJ) | - |
|
|
DMP3056LVT-7MOSFET P-CH 30V 4.3A TSOT-26 |
2,648 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 4.3A (Ta) | 4.5V, 10V | 50mOhm @ 6A, 10V | 2.1V @ 250µA | 11.8 nC @ 10 V | ±25V | 642 pF @ 25 V | - | 1.38W | -55°C ~ 150°C (TJ) | - |
|
DMP2035UVT-13MOSFET P-CH 20V 7.2A TSOT26 |
3,863 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 7.2A (Ta) | 1.8V, 4.5V | 35mOhm @ 4A, 4.5V | 1.5V @ 250µA | 23.1 nC @ 4.5 V | ±12V | 2400 pF @ 10 V | - | 2W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMS2085LSD-13MOSFET P-CH 20V 3.3A 8SO |
2,410 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 3.3A (Ta) | 4.5V, 10V | 85mOhm @ 3.05A, 10V | 2.2V @ 250µA | 7.8 nC @ 10 V | ±20V | 353 pF @ 15 V | Schottky Diode (Isolated) | 1.1W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMT6012LPS-13MOSFET N-CH 60V POWERDI |
3,609 | 0.00 |
RFQ |
Tape & Reel (TR) | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
2N7002WKX-13MOSFET N-CH 60V 115MA SOT323 |
2,641 | 0.00 |
RFQ |
Tape & Reel (TR) | Automotive, AEC-Q101 | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 115mA (Ta) | 5V, 10V | 7.5Ohm @ 50mA, 5V | 2V @ 250µA | - | ±20V | 50 pF @ 25 V | - | 200mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount | |
|
|
2N7002WKX-7MOSFET N-CH 60V 115MA SOT323 |
2,379 | 0.00 |
RFQ |
Tape & Reel (TR) | Automotive, AEC-Q101 | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 115mA (Ta) | 5V, 10V | 7.5Ohm @ 50mA, 5V | 2V @ 250µA | - | ±20V | 50 pF @ 25 V | - | 200mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
