Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	NumberofOutputs	Voltage-Input(Min)	Voltage-Input(Max)	Voltage-Output1	Voltage-Output2	Voltage-Output3	Voltage-Output4	Current-Output(Max)	Power(Watts)	Voltage-Isolation	Applications	Features	OperatingTemperature	Efficiency	MountingType	Size/Dimension

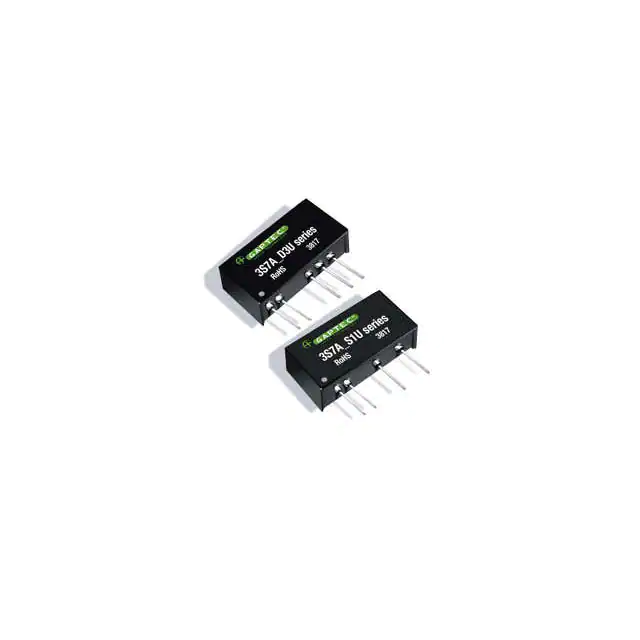

3S7A_1215S1U DC-DC GAPTEC Electronic	150	6.25	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	3S7A_1U (3W)	Active	Isolated Module	1	10.8V	13.2V	15V	-	-	-	200mA	3 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	90%	Through Hole	0.77 L x 0.28 W x 0.39 H (19.6mm x 7.0mm x 10.0mm)
3S7A_1212S1U DC-DC GAPTEC Electronic	150	6.25	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	3S7A_1U (3W)	Active	Isolated Module	1	10.8V	13.2V	12V	-	-	-	250mA	3 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	88%	Through Hole	0.77 L x 0.28 W x 0.39 H (19.6mm x 7.0mm x 10.0mm)

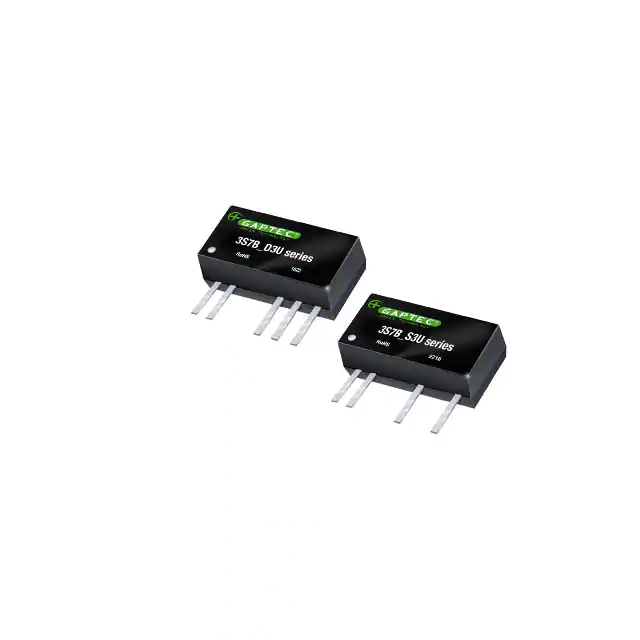

3S7B_1212S3U DC-DC GAPTEC Electronic	148	6.25	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	3S7B_3U (3W)	Active	Isolated Module	1	10.8V	13.2V	12V	-	-	-	250mA	3 W	3 kV	ITE (Commercial)	-	-40°C ~ 85°C	88%	Through Hole	0.77 L x 0.28 W x 0.39 H (19.6mm x 7.0mm x 10.0mm)
3S7A_0515D1U DC-DC GAPTEC Electronic	147	6.25	RFQ	Datasheet	7-SIP Module, 5 Leads	Tube	3S7A_1U (3W)	Active	Isolated Module	2	4.5V	5.5V	15V	-15V	-	-	100mA, 100mA	3 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	84%	Through Hole	0.77 L x 0.28 W x 0.39 H (19.6mm x 7.0mm x 10.0mm)
3S7A_1209S1U DC-DC GAPTEC Electronic	143	6.25	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	3S7A_1U (3W)	Active	Isolated Module	1	10.8V	13.2V	9V	-	-	-	333mA	3 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	87%	Through Hole	0.77 L x 0.28 W x 0.39 H (19.6mm x 7.0mm x 10.0mm)
3S7B_0509S3U DC-DC GAPTEC Electronic	140	6.25	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	3S7B_3U (3W)	Active	Isolated Module	1	4.5V	5.5V	9V	-	-	-	333mA	3 W	3 kV	ITE (Commercial)	-	-40°C ~ 85°C	84%	Through Hole	0.77 L x 0.28 W x 0.39 H (19.6mm x 7.0mm x 10.0mm)
3S7B_1209S3U DC-DC GAPTEC Electronic	135	6.25	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	3S7B_3U (3W)	Active	Isolated Module	1	10.8V	13.2V	9V	-	-	-	333mA	3 W	3 kV	ITE (Commercial)	-	-40°C ~ 85°C	87%	Through Hole	0.77 L x 0.28 W x 0.39 H (19.6mm x 7.0mm x 10.0mm)
3S7B_0505D3U DC-DC GAPTEC Electronic	131	6.25	RFQ	Datasheet	7-SIP Module, 5 Leads	Tube	3S7B_3U (3W)	Active	Isolated Module	2	4.5V	5.5V	5V	-5V	-	-	300mA, 300mA	3 W	3 kV	ITE (Commercial)	-	-40°C ~ 85°C	81%	Through Hole	0.77 L x 0.28 W x 0.39 H (19.6mm x 7.0mm x 10.0mm)
3S7B_0515S3U DC-DC GAPTEC Electronic	127	6.25	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	3S7B_3U (3W)	Active	Isolated Module	1	4.5V	5.5V	15V	-	-	-	200mA	3 W	3 kV	ITE (Commercial)	-	-40°C ~ 85°C	84%	Through Hole	0.77 L x 0.28 W x 0.39 H (19.6mm x 7.0mm x 10.0mm)

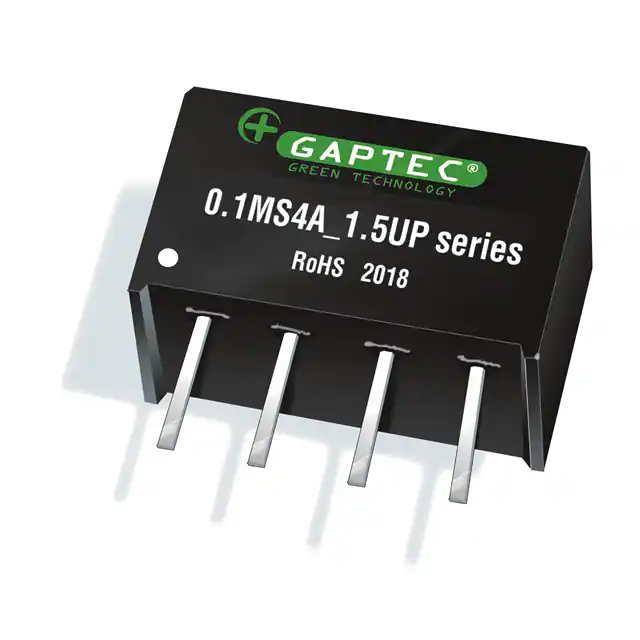

0.1MS4A_0505S1.5UP DC-DC GAPTEC Electronic	235	6.39	RFQ	Datasheet	4-SIP Module	Tube	0.1MS4A_1.5UP (0.1W)	Active	Isolated Module	1	4.5V	5.5V	5V	-	-	-	20mA	100 mW	1.5 kV	ITE (Commercial)	-	-40°C ~ 105°C (With Derating)	75%	Through Hole	0.45 L x 0.24 W x 0.29 H (11.5mm x 6.0mm x 7.5mm)
0.1MS4A_0303S1.5UP DC-DC GAPTEC Electronic	167	6.39	RFQ	Datasheet	4-SIP Module	Tube	0.1MS4A_1.5UP (0.1W)	Active	Isolated Module	1	2.97V	3.6V	3.3V	-	-	-	30.3mA	100 mW	1.5 kV	ITE (Commercial)	-	-40°C ~ 105°C (With Derating)	71%	Through Hole	0.45 L x 0.24 W x 0.29 H (11.5mm x 6.0mm x 7.5mm)

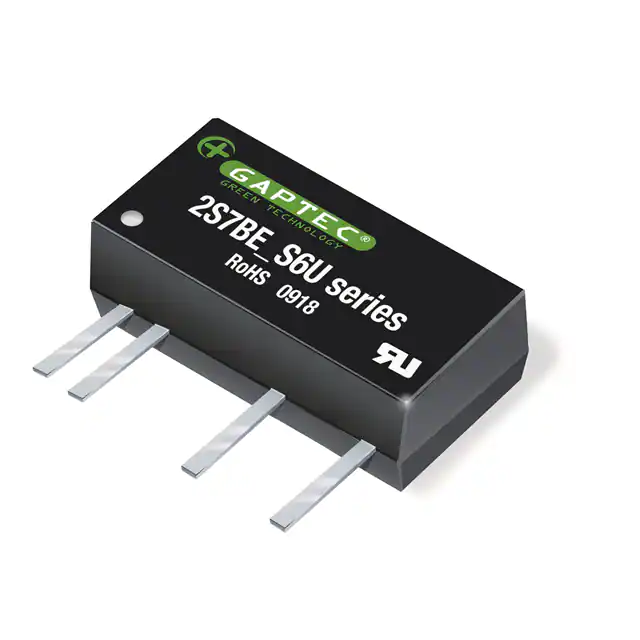

2S7BE_0505S6U DC-DC GAPTEC Electronic	205	6.43	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	2S7BE_6U (2W)	Active	Isolated Module	1	4.5V	5.5V	5V	-	-	-	400mA	2 W	6 kV	ITE (Commercial)	-	-40°C ~ 85°C	78%	Through Hole	0.77 L x 0.24 W x 0.39 H (19.5mm x 6.0mm x 10.0mm)
2S7BE_0515S6U DC-DC GAPTEC Electronic	150	6.43	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	2S7BE_6U (2W)	Active	Isolated Module	1	4.5V	5.5V	15V	-	-	-	133.3mA	2 W	6 kV	ITE (Commercial)	-	-40°C ~ 85°C	82%	Through Hole	0.77 L x 0.24 W x 0.39 H (19.5mm x 6.0mm x 10.0mm)
LC78_12-1.0 DC-DC POL GAPTEC Electronic	158	6.45	RFQ	Datasheet	3-SIP Module	Tube	LC78_1.0	Active	Non-Isolated PoL Module	1	14V	42V	12V	-	-	-	1A	12 W	-	ITE (Commercial)	-	-40°C ~ 85°C (With Derating)	92%	Through Hole	0.46 L x 0.24 W x 0.40 H (11.6mm x 6.0mm x 10.2mm)

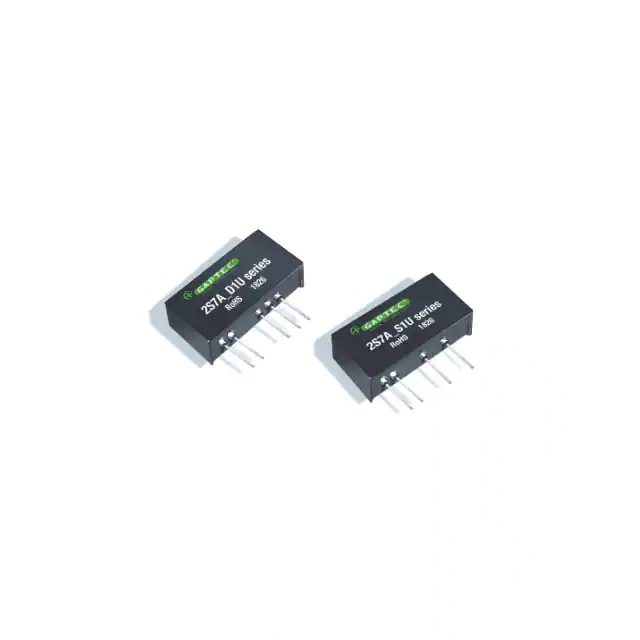

2S7A_4812S1UP DC-DC GAPTEC Electronic	250	6.74	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	2S7A_1U (2W)	Active	Isolated Module	1	43.2V	52.8V	12V	-	-	-	166.7mA	2 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	78%	Through Hole	0.77 L x 0.24 W x 0.39 H (19.5mm x 6.0mm x 10.0mm)

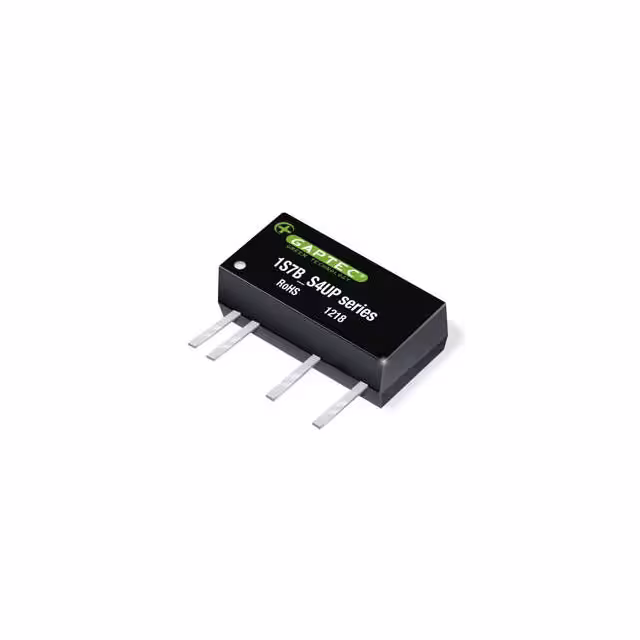

1S7B_1512S4UP DC-DC GAPTEC Electronic	150	7.20	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	1S7B_4UP (1W)	Active	Isolated Module	1	13.5V	16.5V	12V	-	-	-	84mA	1 W	4 kV	ITE (Commercial)	-	-40°C ~ 105°C (With Derating)	74%	Through Hole	0.77 L x 0.24 W x 0.39 H (19.5mm x 6.0mm x 10.0mm)
3S4A_1218S1UP DC-DC GAPTEC Electronic	146	7.48	RFQ	Datasheet	4-SIP Module	Tube	3S4A_1UP (3W)	Active	Isolated Module	1	10.8V	13.2V	18V	-	-	-	166mA	3 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	74%	Through Hole	0.45 L x 0.24 W x 0.39 H (11.5mm x 6.0mm x 10.0mm)
3S4A_0505S1UP DC-DC GAPTEC Electronic	134	7.48	RFQ	Datasheet	4-SIP Module	Tube	3S4A_1UP (3W)	Active	Isolated Module	1	4.5V	5.5V	5V	-	-	-	600mA	3 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	77%	Through Hole	0.45 L x 0.24 W x 0.39 H (11.5mm x 6.0mm x 10.0mm)
3S4A_1209S1UP DC-DC GAPTEC Electronic	117	7.48	RFQ	Datasheet	4-SIP Module	Tube	3S4A_1UP (3W)	Active	Isolated Module	1	10.8V	13.2V	9V	-	-	-	333mA	3 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	83%	Through Hole	0.45 L x 0.24 W x 0.39 H (11.5mm x 6.0mm x 10.0mm)
3S4A_0509S1UP DC-DC GAPTEC Electronic	104	7.48	RFQ	Datasheet	4-SIP Module	Tube	3S4A_1UP (3W)	Active	Isolated Module	1	4.5V	5.5V	9V	-	-	-	333mA	3 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	80%	Through Hole	0.45 L x 0.24 W x 0.39 H (11.5mm x 6.0mm x 10.0mm)
