Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	NumberofOutputs	Voltage-Input(Min)	Voltage-Input(Max)	Voltage-Output1	Voltage-Output2	Voltage-Output3	Voltage-Output4	Current-Output(Max)	Power(Watts)	Voltage-Isolation	Applications	Features	OperatingTemperature	Efficiency	MountingType	Size/Dimension
1S7BE_1205S6U DC-DC GAPTEC Electronic	240	5.55	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	1S7B_6U (1W)	Active	Isolated Module	1	11.4V	12.6V	5V	-	-	-	200mA	1 W	6 kV	ITE (Commercial)	-	-40°C ~ 85°C	70%	Through Hole	0.77 L x 0.28 W x 0.39 H (19.5mm x 7.1mm x 10.0mm)
1S7BE_0305S6U DC-DC GAPTEC Electronic	215	5.55	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	1S7B_6U (1W)	Active	Isolated Module	1	3.135V	3.465V	5V	-	-	-	200mA	1 W	6 kV	ITE (Commercial)	-	-40°C ~ 85°C	70%	Through Hole	0.77 L x 0.28 W x 0.39 H (19.5mm x 7.1mm x 10.0mm)
1S7BE_2405S6U DC-DC GAPTEC Electronic	164	5.55	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	1S7B_6U (1W)	Active	Isolated Module	1	22.8V	25.2V	5V	-	-	-	200mA	1 W	6 kV	ITE (Commercial)	-	-40°C ~ 85°C	70%	Through Hole	0.77 L x 0.28 W x 0.39 H (19.5mm x 7.1mm x 10.0mm)
LCN78_09-0.5 DC-DC POL GAPTEC Electronic	164	5.60	RFQ	Datasheet	3-SIP Module	Tube	LCN78_0.5	Active	Non-Isolated PoL Module	1	11V	42V	9V	-	-	-	500mA	4.5 W	-	ITE (Commercial)	-	-40°C ~ 100°C (With Derating)	96%	Through Hole	0.46 L x 0.24 W x 0.40 H (11.6mm x 6.0mm x 10.2mm)

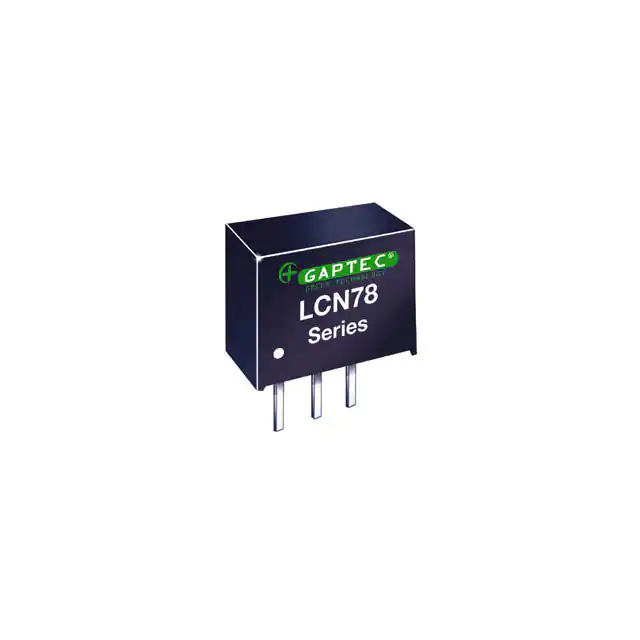

LCN78_03-0.5 DC-DC POL GAPTEC Electronic	152	5.60	RFQ	Datasheet	3-SIP Module	Tube	LCN78_0.5	Active	Non-Isolated PoL Module	1	4.5V	42V	3.3V	-	-	-	500mA	1.65 W	-	ITE (Commercial)	-	-40°C ~ 100°C (With Derating)	92%	Through Hole	0.46 L x 0.24 W x 0.40 H (11.6mm x 6.0mm x 10.2mm)

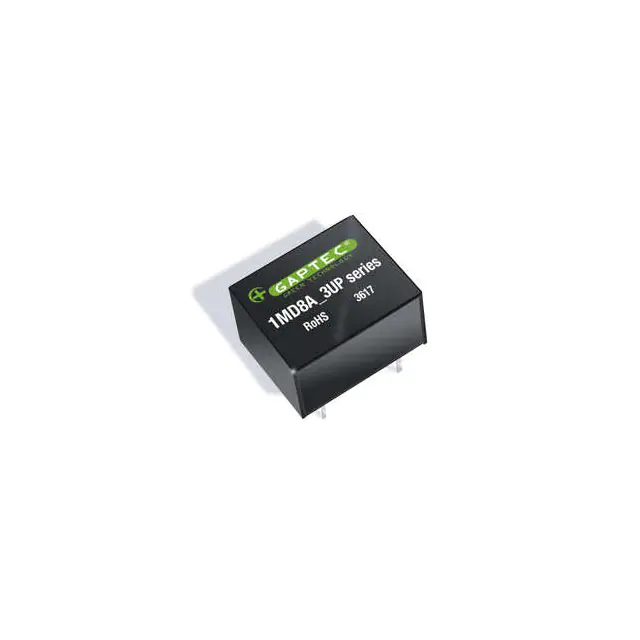

1MD8A_0505S3UP DC-DC GAPTEC Electronic	168	5.70	RFQ	Datasheet	8-DIP Module, 4 Leads	Tube	1MD8A_3UP (1W)	Active	Isolated Module	1	4.5V	5.5V	5V	-	-	-	200mA	1 W	3 kV	ITE (Commercial)	-	-40°C ~ 85°C	69%	Through Hole	0.45 L x 0.39 W x 0.21 H (11.5mm x 9.8mm x 5.4mm)

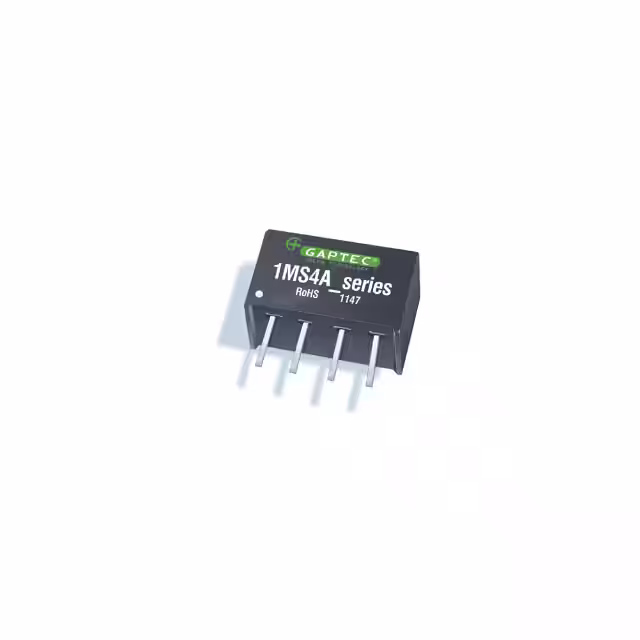

1MS4A_1205S3UP DC-DC GAPTEC Electronic	184	5.79	RFQ	Datasheet	4-SIP Module	Tube	1MS4A_3UP (1W)	Active	Isolated Module	1	10.8V	13.2V	5V	-	-	-	200mA	1 W	3 kV	ITE (Commercial)	-	-40°C ~ 85°C	72%	Through Hole	0.45 L x 0.24 W x 0.29 H (11.5mm x 6.0mm x 7.5mm)
1MS4A_0505S3UP DC-DC GAPTEC Electronic	166	5.79	RFQ	Datasheet	4-SIP Module	Tube	1MS4A_3UP (1W)	Active	Isolated Module	1	4.5V	5.5V	5V	-	-	-	200mA	1 W	3 kV	ITE (Commercial)	-	-40°C ~ 85°C	69%	Through Hole	0.45 L x 0.24 W x 0.29 H (11.5mm x 6.0mm x 7.5mm)
1S7BE_1209D6U DC-DC GAPTEC Electronic	180	5.82	RFQ	Datasheet	7-SIP Module, 5 Leads	Tube	1S7B_6U (1W)	Active	Isolated Module	2	11.4V	12.6V	9V	-9V	-	-	56mA, 56mA	1 W	6 kV	ITE (Commercial)	-	-40°C ~ 85°C	75%	Through Hole	0.77 L x 0.28 W x 0.39 H (19.5mm x 7.1mm x 10.0mm)
1S7BE_0909S6U DC-DC GAPTEC Electronic	178	5.82	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	1S7B_6U (1W)	Active	Isolated Module	1	8.55V	9.45V	9V	-	-	-	112mA	1 W	6 kV	ITE (Commercial)	-	-40°C ~ 85°C	75%	Through Hole	0.77 L x 0.28 W x 0.39 H (19.5mm x 7.1mm x 10.0mm)
1S7BE_2424S6U DC-DC GAPTEC Electronic	178	5.82	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	1S7B_6U (1W)	Active	Isolated Module	1	22.8V	25.2V	24V	-	-	-	42mA	1 W	6 kV	ITE (Commercial)	-	-40°C ~ 85°C	82%	Through Hole	0.77 L x 0.28 W x 0.39 H (19.5mm x 7.1mm x 10.0mm)
1S7BE_1215S6U DC-DC GAPTEC Electronic	175	5.82	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	1S7B_6U (1W)	Active	Isolated Module	1	11.4V	12.6V	15V	-	-	-	67mA	1 W	6 kV	ITE (Commercial)	-	-40°C ~ 85°C	80%	Through Hole	0.77 L x 0.28 W x 0.39 H (19.5mm x 7.1mm x 10.0mm)
1S7BE_0512S6U DC-DC GAPTEC Electronic	175	5.82	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	1S7B_6U (1W)	Active	Isolated Module	1	4.75V	5.25V	12V	-	-	-	84mA	1 W	6 kV	ITE (Commercial)	-	-40°C ~ 85°C	78%	Through Hole	0.77 L x 0.28 W x 0.39 H (19.5mm x 7.1mm x 10.0mm)
1S7BE_2415D6U DC-DC GAPTEC Electronic	175	5.82	RFQ	Datasheet	7-SIP Module, 5 Leads	Tube	1S7B_6U (1W)	Active	Isolated Module	2	22.8V	25.2V	15V	-15V	-	-	34mA, 34mA	1 W	6 kV	ITE (Commercial)	-	-40°C ~ 85°C	80%	Through Hole	0.77 L x 0.28 W x 0.39 H (19.5mm x 7.1mm x 10.0mm)
1S7BE_2412D6U DC-DC GAPTEC Electronic	175	5.82	RFQ	Datasheet	7-SIP Module, 5 Leads	Tube	1S7B_6U (1W)	Active	Isolated Module	2	22.8V	25.2V	12V	-12V	-	-	42mA, 42mA	1 W	6 kV	ITE (Commercial)	-	-40°C ~ 85°C	78%	Through Hole	0.77 L x 0.28 W x 0.39 H (19.5mm x 7.1mm x 10.0mm)

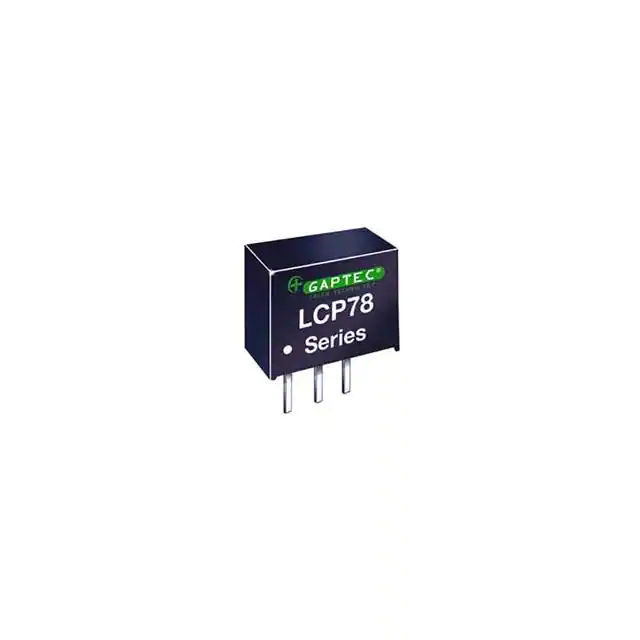

LCP78_05-0.5 DC DC CONVERTER 5V GAPTEC Electronic	302	5.83	RFQ	Datasheet	3-SIP Module	Tube	LCP78_05	Active	Non-Isolated PoL Module	1	6.5V	42V	5V	-	-	-	500mA	-	-	ITE (Commercial)	-	-40°C ~ 85°C (With Derating)	85%	Through Hole	0.46 L x 0.24 W x 0.40 H (11.6mm x 6.0mm x 10.2mm)
LCP78_03-0.5 DC DC CONVERTER 3.3V GAPTEC Electronic	319	5.92	RFQ	Datasheet	3-SIP Module	Tube	LCP78_05	Active	Non-Isolated PoL Module	1	4.5V	42V	3.3V	-	-	-	500mA	-	-	ITE (Commercial)	-	-40°C ~ 85°C (With Derating)	79%	Through Hole	0.46 L x 0.24 W x 0.40 H (11.6mm x 6.0mm x 10.2mm)
3S7A_0515S1U DC-DC GAPTEC Electronic	155	6.25	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	3S7A_1U (3W)	Active	Isolated Module	1	4.5V	5.5V	15V	-	-	-	200mA	3 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	84%	Through Hole	0.77 L x 0.28 W x 0.39 H (19.6mm x 7.0mm x 10.0mm)
3S7B_0505S3U DC-DC GAPTEC Electronic	153	6.25	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	3S7B_3U (3W)	Active	Isolated Module	1	4.5V	5.5V	5V	-	-	-	600mA	3 W	3 kV	ITE (Commercial)	-	-40°C ~ 85°C	78%	Through Hole	0.77 L x 0.28 W x 0.39 H (19.6mm x 7.0mm x 10.0mm)
3S7B_1215D3U DC-DC GAPTEC Electronic	150	6.25	RFQ	Datasheet	7-SIP Module, 5 Leads	Tube	3S7B_3U (3W)	Active	Isolated Module	2	10.8V	13.2V	15V	-15V	-	-	100mA, 100mA	3 W	3 kV	ITE (Commercial)	-	-40°C ~ 85°C	90%	Through Hole	0.77 L x 0.28 W x 0.39 H (19.6mm x 7.0mm x 10.0mm)
