Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	NumberofOutputs	Voltage-Input(Min)	Voltage-Input(Max)	Voltage-Output1	Voltage-Output2	Voltage-Output3	Voltage-Output4	Current-Output(Max)	Power(Watts)	Voltage-Isolation	Applications	Features	OperatingTemperature	Efficiency	MountingType	Size/Dimension
LMTO78_05-0.5 DC-DC POL GAPTEC Electronic	391	2.65	RFQ	Datasheet	4-SMD Module	Tape & Reel (TR),Cut Tape (CT)	LMTO78_0.5	Active	Non-Isolated PoL Module	1	6.5V	36V	5V	-	-	-	500mA	2.5 W	-	ITE (Commercial)	-	-40°C ~ 85°C (With Derating)	84%	Surface Mount	0.53 L x 0.49 W x 0.14 H (13.5mm x 12.5mm x 3.5mm)
LC78_05-3.0 DC-DC POL GAPTEC Electronic	2,828	11.12	RFQ	Datasheet	3-SIP Module	Tube	LC78_3.0	Active	Non-Isolated PoL Module	1	6.5V	28V	5V	-	-	-	3A	15 W	-	ITE (Commercial)	-	-40°C ~ 85°C (With Derating)	92%	Through Hole	0.46 L x 0.30 W x 0.40 H (11.6mm x 7.5mm x 10.2mm)

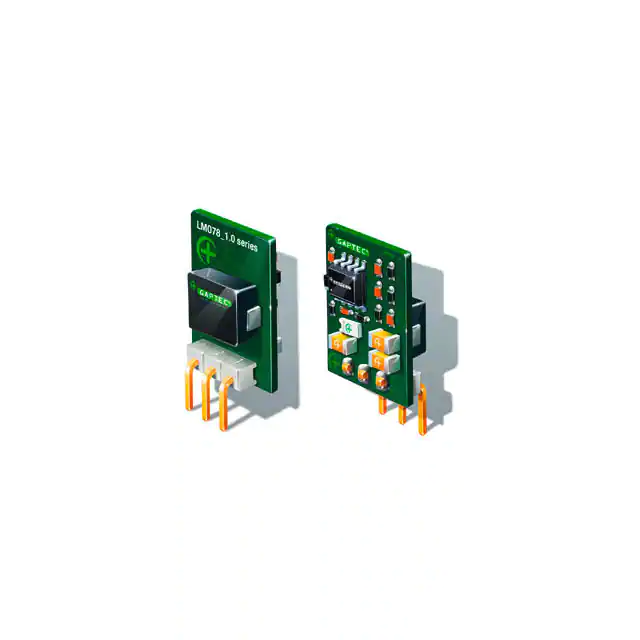

LMO78_05-1.0 DC DC CONVERTER 5V 7.5W GAPTEC Electronic	2,147	4.42	RFQ	Datasheet	3-SIP Module	Tray	LMO78_1.0	Active	Non-Isolated PoL Module	1	8V	36V, 27V	5V	-	-	-	1A, 500mA	7.5 W	-	ITE (Commercial)	-	-40°C ~ 85°C (With Derating)	93%	Through Hole	0.45 L x 0.30 W x 0.69 H (11.5mm x 7.5mm x 17.5mm)
LMS78_12-2.0R DC-DC POL GAPTEC Electronic	3,335	5.13	RFQ	Datasheet	3-SIP Module	Tube	LMS78_2.0R	Active	Non-Isolated PoL Module	1	16V	36V	12V	-	-	-	2A	24 W	-	ITE (Commercial)	-	-40°C ~ 85°C (With Derating)	96%	Through Hole	0.45 L x 0.35 W x 0.69 H (11.5mm x 9.0mm x 17.5mm)

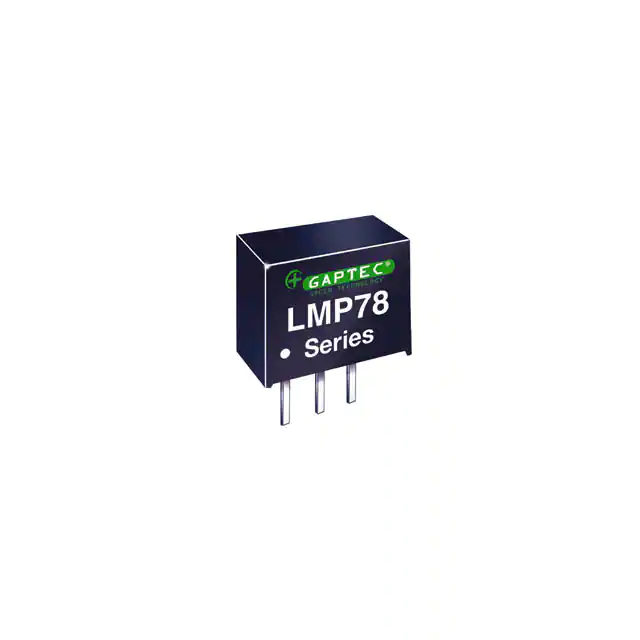

LMP78_05-1.0 DC-DC POL GAPTEC Electronic	3,830	7.95	RFQ	Datasheet	3-SIP Module	Tube	LMP78_1.0	Active	Non-Isolated PoL Module	1	6.5V	42V	5V	-	-	-	1A	5 W	-	ITE (Commercial)	-	-40°C ~ 85°C (With Derating)	93%	Through Hole	0.46 L x 0.24 W x 0.40 H (11.6mm x 6.0mm x 10.2mm)

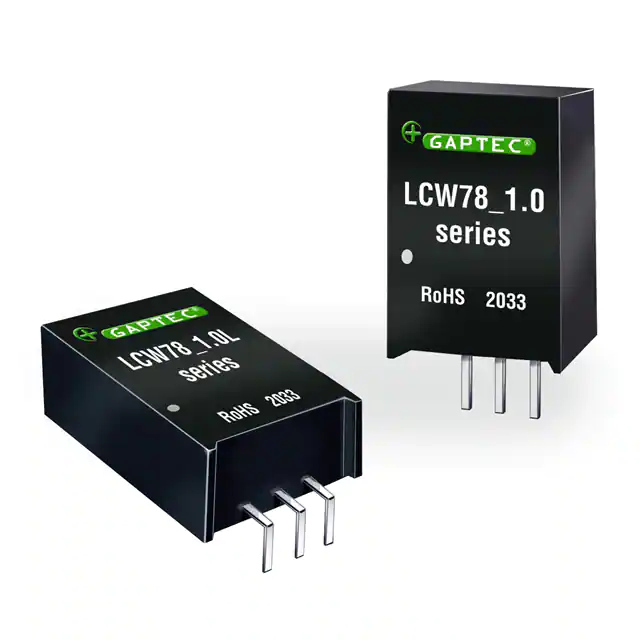

LCW78_05-0.5 DC-DC POL GAPTEC Electronic	3,168	9.45	RFQ	Datasheet	3-SIP Module	Tube	LCW78_0.5	Active	Non-Isolated PoL Module	1	9V	75V	5V	-	-	-	500mA	2.5 W	-	ITE (Commercial)	-	-40°C ~ 100°C (With Derating)	82%	Through Hole	0.46 L x 0.30 W x 0.40 H (11.6mm x 7.5mm x 10.2mm)
LC78_05-2.0 DC-DC POL GAPTEC Electronic	3,779	9.72	RFQ	Datasheet	3-SIP Module	Tube	LC78_2.0	Active	Non-Isolated PoL Module	1	6.5V	30V	5V	-	-	-	2A	10 W	-	ITE (Commercial)	-	-40°C ~ 85°C (With Derating)	94%	Through Hole	0.46 L x 0.30 W x 0.40 H (11.6mm x 7.5mm x 10.2mm)
LCW78_12-1.0 DC-DC POL GAPTEC Electronic	2,184	10.55	RFQ	Datasheet	3-SIP Module	Tube	LCW78_1.0	Active	Non-Isolated PoL Module	1	15V	72V	12V	-	-	-	1A	12 W	-	ITE (Commercial)	-	-40°C ~ 100°C (With Derating)	92%	Through Hole	0.48 L x 0.35 W x 0.69 H (12.1mm x 9.0mm x 17.5mm)
LMO78_2412-3.0 DC-DC POL GAPTEC Electronic	3,292	16.41	RFQ	Datasheet	5-SIP Module	Tube	LMO78_3.0	Active	Non-Isolated PoL Module	1	10V	30V	5 ~ 15V	-	-	-	3A	45 W	-	ITE (Commercial)	Remote On/Off	-40°C ~ 85°C (With Derating)	95%	Through Hole	0.41 L x 0.24 W x 0.65 H (10.4mm x 6.0mm x 16.5mm)
40DAWE_2424S1.5 DC-DC GAPTEC Electronic	2,082	28.29	RFQ	Datasheet	6-DIP Module	Tube	40DAWE_1.5 (40W)	Active	Isolated Module	1	18V	36V	24V	-	-	-	1.667A	40 W	1.5 kV	ITE (Commercial)	Remote On/Off	-40°C ~ 85°C (With Derating)	91%	Through Hole	2.00 L x 1.00 W x 0.46 H (50.8mm x 25.4mm x 11.8mm)

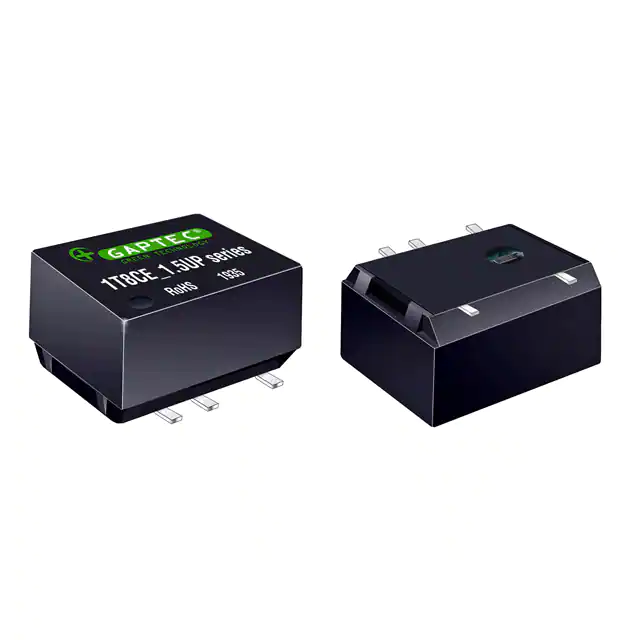

1T8CE_0503S1.5UP DC-DC GAPTEC Electronic	3,647	2.90	RFQ	Datasheet	8-SMD Module, 5 Leads	Tube	1T8CE_1.5UP (1W)	Active	Isolated Module	1	4.5V	5.5V	3.3V	-	-	-	303mA	1 W	1.5 kV	ITE (Commercial)	-	-40°C ~ 100°C (With Derating)	74%	Surface Mount	0.50 L x 0.43 W x 0.28 H (12.8mm x 10.8mm x 7.1mm)
1T8CE_0509S1.5UP DC-DC GAPTEC Electronic	3,397	2.90	RFQ	Datasheet	8-SMD Module, 5 Leads	Tube	1T8CE_1.5UP (1W)	Active	Isolated Module	1	4.5V	5.5V	9V	-	-	-	112mA	1 W	1.5 kV	ITE (Commercial)	-	-40°C ~ 100°C (With Derating)	83%	Surface Mount	0.50 L x 0.43 W x 0.28 H (12.8mm x 10.8mm x 7.1mm)
1T8E_0515S1U DC-DC GAPTEC Electronic	3,189	2.90	RFQ	Datasheet	8-SMD Module, 5 Leads	Tube	1T8E_1U (1W)	Active	Isolated Module	1	4.5V	5.5V	15V	-	-	-	67mA	1 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	80%	Surface Mount	0.50 L x 0.30 W x 0.25 H (12.7mm x 7.6mm x 6.4mm)
1T8CE_0512S1.5UP DC-DC GAPTEC Electronic	2,331	2.90	RFQ	Datasheet	8-SMD Module, 5 Leads	Tube	1T8CE_1.5UP (1W)	Active	Isolated Module	1	4.5V	5.5V	12V	-	-	-	84mA	1 W	1.5 kV	ITE (Commercial)	-	-40°C ~ 100°C (With Derating)	83%	Surface Mount	0.50 L x 0.43 W x 0.28 H (12.8mm x 10.8mm x 7.1mm)
1T8E_0505S1U DC-DC GAPTEC Electronic	2,815	2.90	RFQ	Datasheet	8-SMD Module, 5 Leads	Tube	1T8E_1U (1W)	Active	Isolated Module	1	4.5V	5.5V	5V	-	-	-	200mA	1 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	70%	Surface Mount	0.50 L x 0.30 W x 0.25 H (12.7mm x 7.6mm x 6.4mm)
LMTO78_15-0.5 DC-DC POL GAPTEC Electronic	100	2.65	RFQ	Datasheet	4-SMD Module	Tape & Reel (TR),Cut Tape (CT)	LMTO78_0.5	Active	Non-Isolated PoL Module	1	19V	36V	15V	-	-	-	500mA	7.5 W	-	ITE (Commercial)	-	-40°C ~ 85°C (With Derating)	93%	Surface Mount	0.53 L x 0.49 W x 0.14 H (13.5mm x 12.5mm x 3.5mm)
1S7A_0509S1.5UP DC-DC GAPTEC Electronic	3,603	2.88	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	1S7A_1.5UP (1W)	Active	Isolated Module	1	4.5V	5.5V	9V	-	-	-	111mA	1 W	1.5 kV	ITE (Commercial)	-	-40°C ~ 105°C (With Derating)	83%	Through Hole	0.77 L x 0.24 W x 0.40 H (19.7mm x 6.0mm x 10.2mm)
1S7A_0512D1.5UP DC-DC GAPTEC Electronic	2,470	2.88	RFQ	Datasheet	7-SIP Module, 5 Leads	Tube	1S7A_1.5UP (1W)	Active	Isolated Module	2	4.5V	5.5V	12V	-12V	-	-	42mA, 42mA	1 W	1.5 kV	ITE (Commercial)	-	-40°C ~ 105°C (With Derating)	83%	Through Hole	0.77 L x 0.24 W x 0.40 H (19.7mm x 6.0mm x 10.2mm)
1S7A_0512S1.5UP DC-DC GAPTEC Electronic	2,995	2.88	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	1S7A_1.5UP (1W)	Active	Isolated Module	1	4.5V	5.5V	12V	-	-	-	84mA	1 W	1.5 kV	ITE (Commercial)	-	-40°C ~ 105°C (With Derating)	83%	Through Hole	0.77 L x 0.24 W x 0.40 H (19.7mm x 6.0mm x 10.2mm)
1S7A_0505D1.5UP DC-DC GAPTEC Electronic	3,493	2.88	RFQ	Datasheet	7-SIP Module, 5 Leads	Tube	1S7A_1.5UP (1W)	Active	Isolated Module	2	4.5V	5.5V	5V	-5V	-	-	100mA, 100mA	1 W	1.5 kV	ITE (Commercial)	-	-40°C ~ 105°C (With Derating)	82%	Through Hole	0.77 L x 0.24 W x 0.40 H (19.7mm x 6.0mm x 10.2mm)
