Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	NumberofOutputs	Voltage-Input(Min)	Voltage-Input(Max)	Voltage-Output1	Voltage-Output2	Voltage-Output3	Voltage-Output4	Current-Output(Max)	Power(Watts)	Voltage-Isolation	Applications	Features	OperatingTemperature	Efficiency	MountingType	Size/Dimension

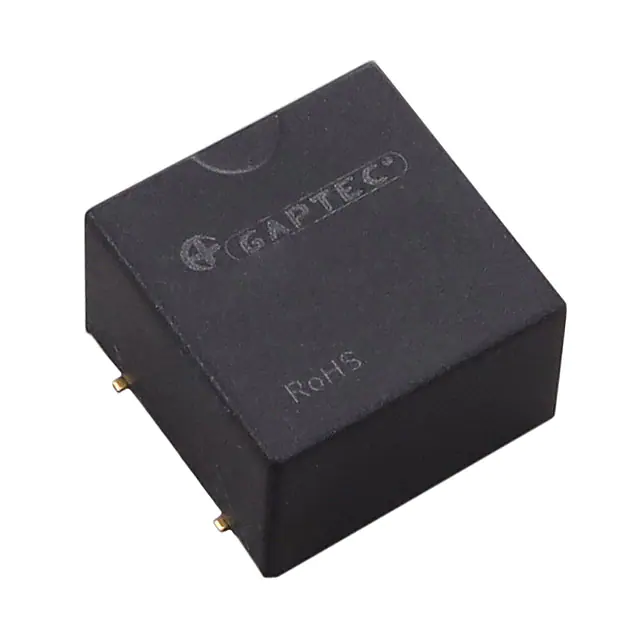

1T8W_1205S1.5RP DC-DC GAPTEC Electronic	138	7.53	RFQ	Datasheet	8-SMD Module, 5 Leads	Tube	1T8W_1.5RP (1W)	Active	Isolated Module	1	9V	18V	5V	-	-	-	200mA	1 W	1.5 kV	ITE (Commercial)	-	-40°C ~ 85°C	77%	Surface Mount	0.55 L x 0.55 W x 0.36 H (14.0mm x 14.0mm x 9.1mm)
LMP78_6.5-1.0R DC-DC POL GAPTEC Electronic	167	7.95	RFQ	Datasheet	3-SIP Module	Tube	LMP78_1.0	Active	Non-Isolated PoL Module	1	8V	42V	6.5V	-	-	-	1A	6.5 W	-	ITE (Commercial)	-	-40°C ~ 85°C (With Derating)	93%	Through Hole	0.46 L x 0.30 W x 0.40 H (11.6mm x 7.5mm x 10.2mm)

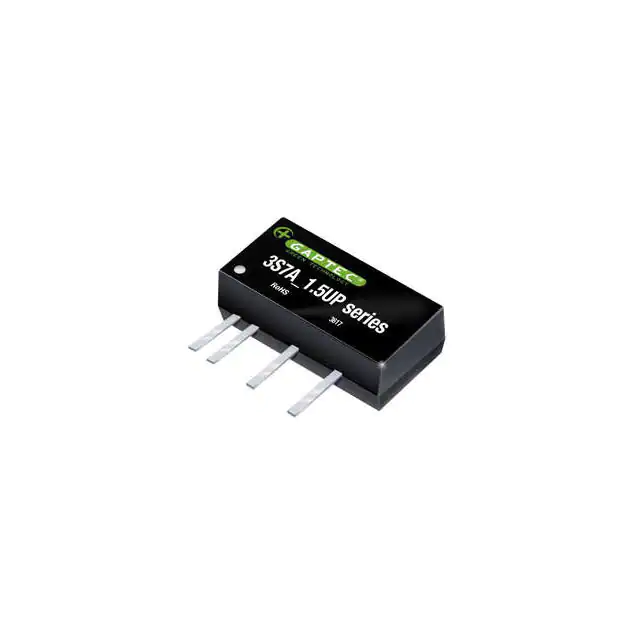

3S7A_0512S1.5UP DC-DC GAPTEC Electronic	2,525	8.12	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	3S7A_1.5UP (3W)	Active	Isolated Module	1	4.5V	5.5V	12V	-	-	-	250mA	3 W	1.5 kV	ITE (Commercial)	-	-40°C ~ 105°C (With Derating)	87%	Through Hole	0.77 L x 0.30 W x 0.39 H (19.5mm x 7.5mm x 10.0mm)
3S7A_2409S1.5UP DC-DC GAPTEC Electronic	131	8.12	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	3S7A_1.5UP (3W)	Active	Isolated Module	1	21.6V	26.4V	9V	-	-	-	333mA	3 W	1.5 kV	ITE (Commercial)	-	-40°C ~ 105°C (With Derating)	83%	Through Hole	0.77 L x 0.30 W x 0.39 H (19.5mm x 7.5mm x 10.0mm)
3S7A_0524S1.5UP DC-DC GAPTEC Electronic	125	8.12	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	3S7A_1.5UP (3W)	Active	Isolated Module	1	4.5V	5.5V	24V	-	-	-	125mA	3 W	1.5 kV	ITE (Commercial)	-	-40°C ~ 105°C (With Derating)	87%	Through Hole	0.77 L x 0.30 W x 0.39 H (19.5mm x 7.5mm x 10.0mm)
3S7A_0505S1.5UP DC-DC GAPTEC Electronic	125	8.12	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	3S7A_1.5UP (3W)	Active	Isolated Module	1	4.5V	5.5V	5V	-	-	-	600mA	3 W	1.5 kV	ITE (Commercial)	-	-40°C ~ 105°C (With Derating)	83%	Through Hole	0.77 L x 0.30 W x 0.39 H (19.5mm x 7.5mm x 10.0mm)
3S7B_1209S3UP DC-DC GAPTEC Electronic	125	8.12	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	3S7B_3UP (3W)	Active	Isolated Module	1	10.8V	13.2V	9V	-	-	-	333mA	3 W	3 kV	ITE (Commercial)	-	-40°C ~ 85°C	87%	Through Hole	0.77 L x 0.30 W x 0.39 H (19.5mm x 7.5mm x 10.0mm)
3S7A_1203S1.5UP DC-DC GAPTEC Electronic	124	8.12	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	3S7A_1.5UP (3W)	Active	Isolated Module	1	10.8V	13.2V	3.3V	-	-	-	909mA	3 W	1.5 kV	ITE (Commercial)	-	-40°C ~ 105°C (With Derating)	80%	Through Hole	0.77 L x 0.30 W x 0.39 H (19.5mm x 7.5mm x 10.0mm)
3S7B_2405S3UP DC-DC GAPTEC Electronic	123	8.12	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	3S7B_3UP (3W)	Active	Isolated Module	1	21.6V	26.4V	5V	-	-	-	600mA	3 W	3 kV	ITE (Commercial)	-	-40°C ~ 85°C	84%	Through Hole	0.77 L x 0.30 W x 0.39 H (19.5mm x 7.5mm x 10.0mm)
3S7A_0503S1.5UP DC-DC GAPTEC Electronic	115	8.12	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	3S7A_1.5UP (3W)	Active	Isolated Module	1	4.5V	5.5V	3.3V	-	-	-	909mA	3 W	1.5 kV	ITE (Commercial)	-	-40°C ~ 105°C (With Derating)	80%	Through Hole	0.77 L x 0.30 W x 0.39 H (19.5mm x 7.5mm x 10.0mm)

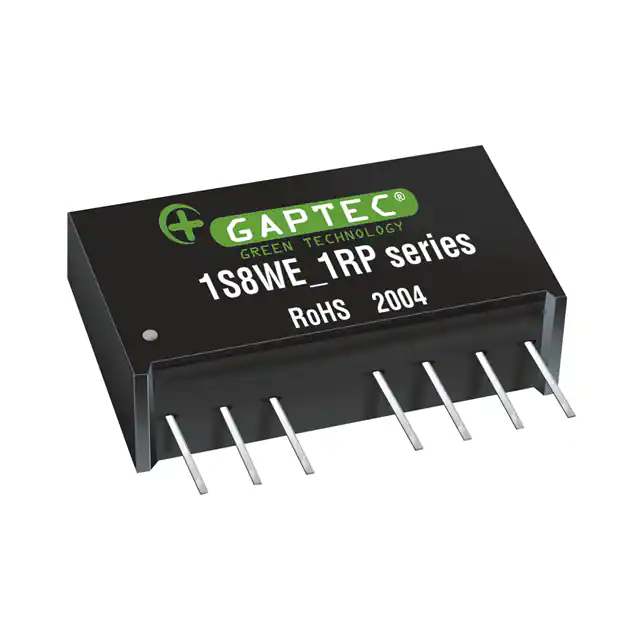

1S8WE_0515S1RP DC-DC GAPTEC Electronic	113	8.27	RFQ	Datasheet	8-SIP Module, 7 Leads	Tube	1S8WE_1RP (1W)	Active	Isolated Module	1	5V	9V	15V	-	-	-	67mA	1 W	1 kV	ITE (Commercial)	-	-40°C ~ 85°C	70%	Through Hole	0.86 L x 0.36 W x 0.44 H (21.8mm x 9.2mm x 11.1mm)
2S7WA_1212S3RP DC-DC GAPTEC Electronic	122	8.40	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	2S7WA_3RP (2W)	Active	Isolated Module	1	9V	18V	12V	-	-	-	167mA	2 W	3 kV	ITE (Commercial)	-	-40°C ~ 85°C	80%	Through Hole	0.77 L x 0.28 W x 0.39 H (19.5mm x 7.1mm x 10.0mm)

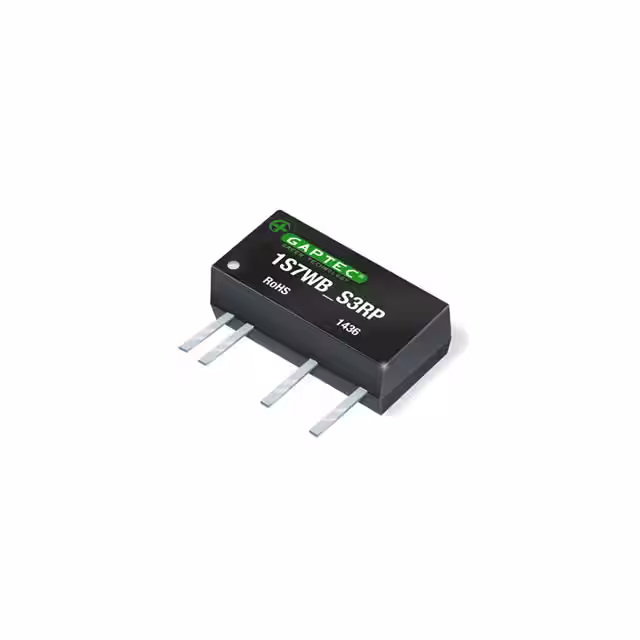

1S7WB_1212S3RP DC-DC GAPTEC Electronic	120	8.42	RFQ	Datasheet	7-SIP Module, 4 Leads	Tube	1S7WB (1W)	Active	Isolated Module	1	9V	18V	12V	-	-	-	84mA	1 W	3 kV	ITE (Commercial)	-	-40°C ~ 85°C	75%	Through Hole	0.77 L x 0.28 W x 0.39 H (19.5mm x 7.1mm x 10.0mm)

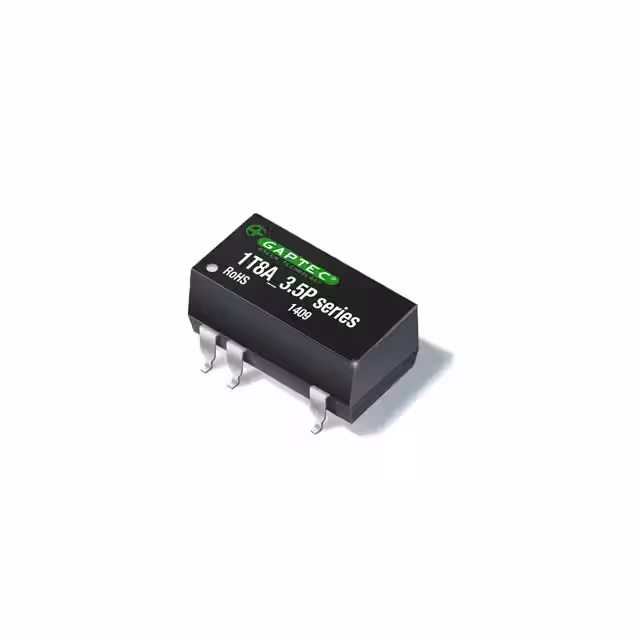

1T8A_0505S3.5UP DC-DC GAPTEC Electronic	109	8.42	RFQ	Datasheet	8-SMD Module, 5 Leads	Tube	1T8A_3.5P (1W)	Active	Isolated Module	1	4.5V	5.5V	5V	-	-	-	200mA	1 W	3.5 kV	ITE (Commercial)	-	-50°C ~ 125°C (With Derating)	85%	Surface Mount	0.50 L x 0.33 W x 0.29 H (12.7mm x 8.3mm x 7.3mm)
LCW78_06-0.5 DC-DC POL GAPTEC Electronic	210	9.45	RFQ	Datasheet	3-SIP Module	Tube	LCW78_0.5	Active	Non-Isolated PoL Module	1	9V	75V	6.5V	-	-	-	500mA	3.25 W	-	ITE (Commercial)	-	-40°C ~ 100°C (With Derating)	84%	Through Hole	0.46 L x 0.30 W x 0.40 H (11.6mm x 7.5mm x 10.2mm)
LCW78_15-0.5 DC-DC POL GAPTEC Electronic	131	9.45	RFQ	Datasheet	3-SIP Module	Tube	LCW78_0.5	Active	Non-Isolated PoL Module	1	20V	75V	15V	-	-	-	500mA	7.5 W	-	ITE (Commercial)	-	-40°C ~ 100°C (With Derating)	90%	Through Hole	0.46 L x 0.30 W x 0.40 H (11.6mm x 7.5mm x 10.2mm)
LCW78_03-0.5 DC-DC POL GAPTEC Electronic	126	9.45	RFQ	Datasheet	3-SIP Module	Tube	LCW78_0.5	Active	Non-Isolated PoL Module	1	9V	75V	3.3V	-	-	-	500mA	1.65 W	-	ITE (Commercial)	-	-40°C ~ 100°C (With Derating)	78%	Through Hole	0.46 L x 0.30 W x 0.40 H (11.6mm x 7.5mm x 10.2mm)
LCW78_09-0.5 DC-DC POL GAPTEC Electronic	126	9.45	RFQ	Datasheet	3-SIP Module	Tube	LCW78_0.5	Active	Non-Isolated PoL Module	1	14V	75V	9V	-	-	-	500mA	4.5 W	-	ITE (Commercial)	-	-40°C ~ 100°C (With Derating)	86%	Through Hole	0.46 L x 0.30 W x 0.40 H (11.6mm x 7.5mm x 10.2mm)
LC78_12-1.5 DC-DC POL GAPTEC Electronic	525	9.72	RFQ	Datasheet	3-SIP Module	Tube	LC78_2.0	Active	Non-Isolated PoL Module	1	15V	30V	12V	-	-	-	1.5A	18 W	-	ITE (Commercial)	-	-40°C ~ 85°C (With Derating)	97%	Through Hole	0.46 L x 0.30 W x 0.40 H (11.6mm x 7.5mm x 10.2mm)
LMTM78_12-0.5 DC-DC POL GAPTEC Electronic	269	2.00	RFQ	Datasheet	6-SMD Module	Tape & Reel (TR),Cut Tape (CT)	LMTM78_12-0.5	Active	Non-Isolated PoL Module	1	15V	36V	12V	-	-	-	500mA	6 W	-	ITE (Commercial)	Adjustable Output, Remote On/Off	-40°C ~ 105°C (With Derating)	92%	Surface Mount	0.35 L x 0.28 W x 0.12 H (9.0mm x 7.0mm x 3.1mm)
